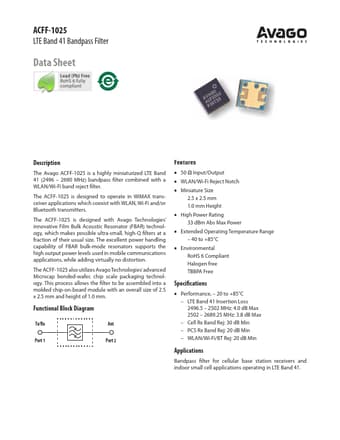

ACFF-1025
Description
The Avago ACFF-1025 is a highly miniaturized LTE Band 41 (2496
- 2690 MHz) bandpass filter bined with a WLAN/Wi-Fi band reject filter. The ACFF-1025 is designed to operate in Wi MAX transceiver applications which coexist with WLAN, Wi-Fi and/or Bluetooth transmitters. The ACFF-1025 is designed with Avago Technologies’ innovative Film Bulk Acoustic Resonator (FBAR) technology, which makes possible ultra-small, high-Q filters at a fraction of their usual size. The excellent power handling capability of FBAR bulk-mode resonators supports the high output power levels used in mobile munications applications, while adding virtually no distortion. The ACFF-1025 also utilizes Avago Technologies’advanced Microcap bonded-wafer, chip scale packaging technology. This process allows the filter to be assembled into a molded chip-on-board module with an overall size of 2.5 x 2.5 mm and height of 1.0 mm.
Functional Block Diagram
Tx/Rx Ant
Port 1
Port 2
Features
- 50 W Input/Output
-...
