AFBR-2418TZ, AFBR-2408Z - DC-50MBd Miniature Link Fiber Optic Receiver

AFBR-2418TZ Description

AFBR-24x8xZ DC-50MBd Miniature Link Fiber Optic Receiver Data Sheet .
The component is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applicati.

AFBR-2418TZ Features

* RoHS-compliant
* Work with Avago HFBR-14xxZ (820nm LED) transmitter
* Data transmission at signal rates from DC up to 50 MBd
* Receiver: Integrated PIN diode and digitalizing IC with CMOS/TTL output logic
* Up to 2 km distance with Multimode Glass Fiber

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AFBR-2418TZ, AFBR-2408Z. Please refer to the document for exact specifications by model.

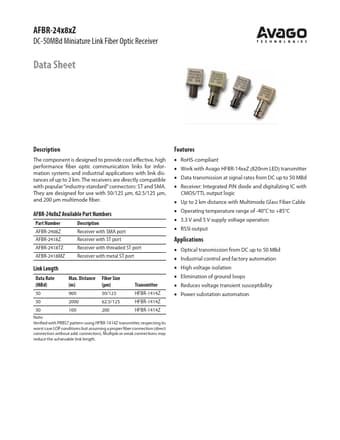

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AFBR-2418TZ, AFBR-2408Z
Manufacturer
Avago
File Size
145.83 KB
Datasheet
AFBR-2408Z-Avago.pdf
Description
DC-50MBd Miniature Link Fiber Optic Receiver
Note
This datasheet PDF includes multiple part numbers: AFBR-2418TZ, AFBR-2408Z.
Please refer to the document for exact specifications by model.
