HCMS-2972, HCMS-2905, High Performance CMOS 5 x 7 Alphanumeric Displays

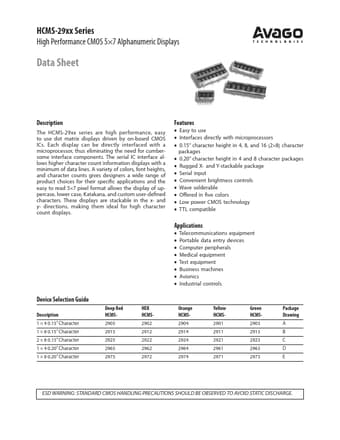

HCMS-29xx Series High Performance CMOS 5×7 Alphanumeric Displays Data Sheet .
The HCMS-29xx series are high performance, easy to use dot matrix displays driven by on-board CMOS ICs.

HCMS-2905-Avago.pdf

HCMS-2972 Datasheet Preview — This datasheet PDF includes multiple part numbers: HCMS-2972, HCMS-2905. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HCMS-2972, HCMS-2905

Manufacturer:

Avago

File Size:

210.09 KB

Description:

High Performance CMOS 5 x 7 Alphanumeric Displays

Note:

This datasheet PDF includes multiple part numbers: HCMS-2972, HCMS-2905.
Please refer to the document for exact specifications by model.

Features

* Easy to use
* Interfaces directly with microprocessors
* 0.15” character height in 4, 8, and 16 (2×8) character packages
* 0.20” character height in 4 and 8 character packages
* Rugged X- and Y-stackable package
* Serial input
* Conven

Applications

* Telecommunications equipment
* Portable data entry devices
* Computer peripherals
* Medical equipment
* Test equipment
* Business machines
* Avionics
