HCPL-0201 Datasheet - Avago

HCPL-0201 Logic Gate Optocouplers

The HCPL-22XX, HCPL-02XX, and HCNW22XX are optically-coupled logic gates. The HCPL‑22XX, and HCPL-02XX contain a GaAsP LED while the HCNW22XX contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatib.

HCPL-0201 Features

* 10 kV/µs minimum Common Mode Rejection (HCCMNRW) a2t2V1C1M)= 1000 V (HCPL-2211/2212/0211/2232,

* Wide operating VCC range: 4.5 to 20 Volts

* 300 ns propagation delay guaranteed over the full temperature range

* 5 Mbd typical signal rate

* Low input curre

HCPL-0201 Datasheet (272.90 KB)

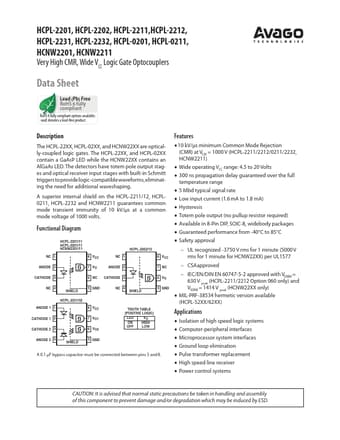

Preview of HCPL-0201 PDF
HCPL-0201 Datasheet Preview Page 2 HCPL-0201 Datasheet Preview Page 3

Datasheet Details

Part number:

HCPL-0201

Manufacturer:

Avago

File Size:

272.90 KB

Description:

Logic gate optocouplers.
