HCPL-063N - Optocouplers

Product Overview

Avago

Part number	HCPL-063N
Manufacturer	Avago
File Size	476.70 KB
Description	Optocouplers
Datasheet	HCPL-063N Datasheet
Note	This datasheet PDF includes multiple part numbers: HCPL-063N, HCPL-261A. Please refer to the document for exact specifications by model.

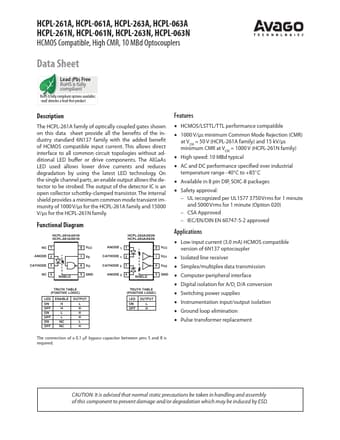

Additional preview pages of the HCPL-063N datasheet.

The HCPL-261A family of optically coupled gates shown on this data sheet provide all the benefits of the industry standard 6N137 family with the added benefit of HCMOS compatible input current. This allows direct interface to all common circuit topologies without additional LED buffer or drive components. The AlGaAs LED used allows lower drive currents and reduces degradation by using the latest LED technology. On the single channel parts, an enable output allows the detector to be strobed.
