HFBR-1522Z, HFBR-0500Z, The Versatile Fiber Optic Connection

HFBR-0500Z Series Versatile Link The Versatile Fiber Optic Connection Data Sheet .
The Versatile Link series is a complete family of fiber optic link components for applications requiring a low cost solution.

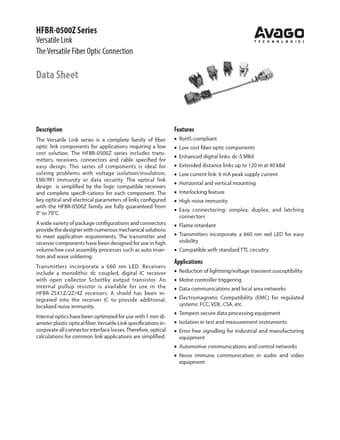

datasheet Preview Page 1 from Datasheet4u.com

HFBR-0500Z-Avago.pdf

HFBR-1522Z Datasheet Preview — This datasheet PDF includes multiple part numbers: HFBR-1522Z, HFBR-0500Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HFBR-1522Z, HFBR-0500Z

Manufacturer:

Avago

File Size:

308.40 KB

Description:

The Versatile Fiber Optic Connection

Note:

This datasheet PDF includes multiple part numbers: HFBR-1522Z, HFBR-0500Z.
Please refer to the document for exact specifications by model.

Features

* RoHS-compliant
* Low cost fiber optic components
* Enhanced digital links: dc-5 MBd
* Extended distance links up to 120 m at 40 kBd
* Low current link: 6 mA peak supply current
* Horizontal and vertical mounting
* Interlocking feature

Applications

* requiring a low cost solution. The HFBR-0500Z series includes trans mitters, receivers, connectors and cable specified for easy design. This series of compon ents is ideal for solving problems with voltage isolation/insulation, EMI/RFI immunity or data security. The optical link design is simpli
