HSMA-A460-W50M1 - SMT LED Surface Mount LED Indicator

Datasheet Summary

Description

The Power PLCC-4 SMT LED with Lens are high performance PLCC-4 package size SMT LEDs targeted mainly in Automotive & Electronics Signs and Signals (ESS) markets.

Features

  • x Industry standard PLCC-4 x High reliability LED package x High brightness using AlInGaP and InGaN dice tech- nologies x High optical efficiency x Narrow Viewing angle at 50° x Available in 8mm carrier tape on 7-inch reel.

📥 Download Datasheet

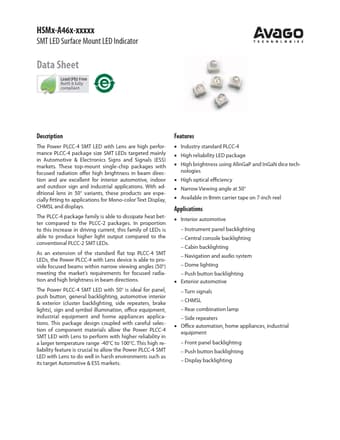

Datasheet preview – HSMA-A460-W50M1

Datasheet Details

Part number HSMA-A460-W50M1
Manufacturer Avago
File Size 172.37 KB
Description SMT LED Surface Mount LED Indicator
Datasheet download datasheet HSMA-A460-W50M1 Datasheet
Additional preview pages of the HSMA-A460-W50M1 datasheet.

📁 Similar Datasheet

  • HSMA-A10x - (HSMx-A10x) Surface Mount LED Indicator (Agilent)
  • HSMA-C120 - (HSMx-C120) Right Angle Chip LED (Agilent Technologies)
  • HSMA-C265 - (HSMx-C265) AlInGaP chipLED (HP)
  • HSMA-C540 - (HSMx-C540) Oval Lens High Performance Surface Mount LEDs (Hewlett-Packard)
  • HSMA-T425 - Surface Mount High Performance AlInGaP LED Indicators (HP)
  • HSMA-T525 - Surface Mount High Performance AlInGaP LED Indicators (HP)
  • HSMA-T625 - Surface Mount High Performance AlInGaP LED Indicators (HP)
  • HSMA-T725 - Surface Mount High Performance AlInGaP LED Indicators (HP)
  • HSMA4001 - 1.0AMP.SURFACE MOUNT RECTIFIERS (Hi-Sincerity Mocroelectronics)
  • HSMA4002 - 1.0AMP.SURFACE MOUNT RECTIFIERS (Hi-Sincerity Mocroelectronics)
Other Datasheets by Avago

Full PDF Text Transcription

Click to expand full text
HSMx-A46x-xxxxx SMT LED Surface Mount LED Indicator Data Sheet Description The Power PLCC-4 SMT LED with Lens are high performance PLCC-4 package size SMT LEDs targeted mainly in Automotive & Electronics Signs and Signals (ESS) markets. These top-mount single-chip packages with focused radiation offer high brightness in beam direction and are excellent for interior automotive, indoor and outdoor sign and industrial applications. With additional lens in 50° variants, these products are especially fitting to applications for Mono-color Text Display, CHMSL and displays. The PLCC-4 package family is able to dissipate heat better compared to the PLCC-2 packages.
