SBN6400G

64-COMMON Driver

SBN6400G Features

* To be paired with the SBN0064G 64-SEGMENT driver.

* 64-COMMON STN LCD drivers.

* Master Mode and Slave Mode for cascaded connection to expand COMMON numbers.

* On-chip RC oscillator; only an external resistor and an external capacitor are needed.

* Provides

SBN6400G General Description

The SBN6400G is a 64-COMMON driver, designed to be paired with the SBN0064G 64-SEGMENT driver to drive a dot-matrix STN LCD panel. Functionally, the SBN6400G includes 64 COMMON drivers, on-chip RC oscillator, a 64-bit bi-directional shift register, and timing generation circuit. The RC oscillator .

SBN6400G Datasheet (236.18 KB)

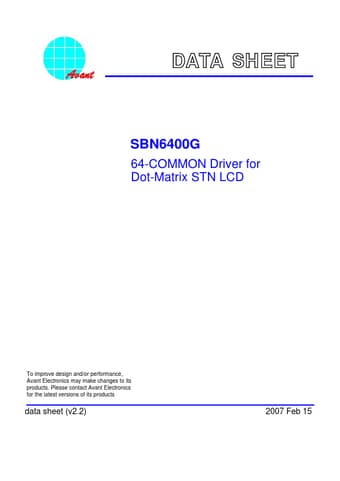

Preview of SBN6400G PDF

Datasheet Details

Part number:

SBN6400G

Manufacturer:

Avant

File Size:

236.18 KB

Description:

64-common driver.
DATA SHEET SBN6400G 64-COMMON Driver for Dot-Matrix STN LCD To improve design and/or performance, Avant Electronics may make changes to its products..
