MS20392 CLEVIS PIN

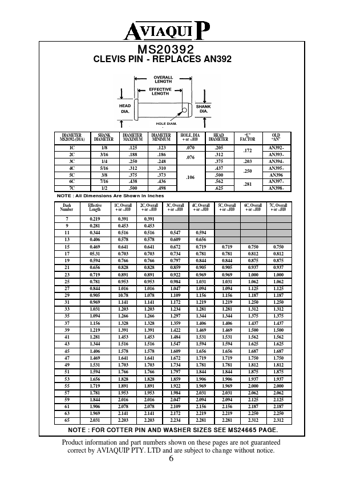

CLEVIS PIN - REPLACES AN392 MS20392 HOLE DIAM. DIAMETER MS20392-(DIA) 1C 2C 3C 4C 5C 6C 7C SHANK DIAMETER 1/8 3/16 1/4 5/16 3/8 7/16 1/2 DIAMETER MAXIMUM .125 .188 .250 .312 .375 .438 .500 DIAMETER MINIMUM .123 .186 .248 .310 .373 .436 .498 HOLE, DIA + or .010 .070 .076 HEAD DIAMETER .205 .312 .375 .437 .500 .562 .625 “L” FACTOR .172 .203 .250 .281 OLD “AN” AN392AN393AN394AN395AN396 AN397AN398- .106 NOTE : All Dimensions Are Shown In Inches Dash Number 7 9 11 13 15 17 19 21 .

MS20392 Datasheet (112.18 KB)

MS20392 Datasheet Preview — Preview of MS20392 PDF

Datasheet Details

Part number:

MS20392

Manufacturer:

Aviaquip

File Size:

112.18 KB

Description:

Clevis pin.
