AW2015 - 3-Channel LED Driver

Product Overview

Awinic

Datasheet Details

Part number	AW2015
Manufacturer	Awinic
File Size	1.64 MB
Description	3-Channel LED Driver
Datasheet	AW2015 Datasheet

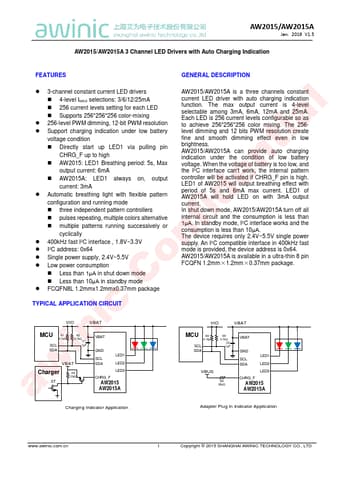

Additional preview pages of the AW2015 datasheet.

Product details

Description

3-channel constant current LED drivers 4-level IMAX selections: 3/6/12/25mA 256 current levels setting for each LED Supports 256 256 256 color-mixing 256-level PWM dimming, 12-bit PWM resolution Support charging indication under low battery voltage condition Directly start up LED1 via pulling pin CHRG_F up to high AW2015: LED1 Breathing period: 5s, Max AW2015/AW2015A is a three channels constant current LED driver with auto charging indic
