IQS156

Minimalist Capacitive Sensor

Azoteq

IQS156 Features

* Sub 6uA current consumption Automatic tuning for optimal operation in various environments The IQS156 ProxSense® IC is a fully integrated six channel capacitive contact and proximity sensor with market leading sensitivity and automatic tuning to the sense electrodes. The IQS156 provides a minimalist

IQS156 General Description

Monitoring and automatic execution of the ATI algorithm. Signal processing and digital filtering. Detection of PROX and TOUCH events. Managing outputs of the device. Managing serial communications. 4 Reference Design Figure 4.1 Reference Design. Use C3 and C4 for added RF immunity. Place C1-C4 a.

IQS156 Datasheet (494.68 KB)

IQS156 Datasheet Preview — Preview of IQS156 PDF

Datasheet Details

Part number:

IQS156

Manufacturer:

Azoteq

File Size:

494.68 KB

Description:

Minimalist capacitive sensor.

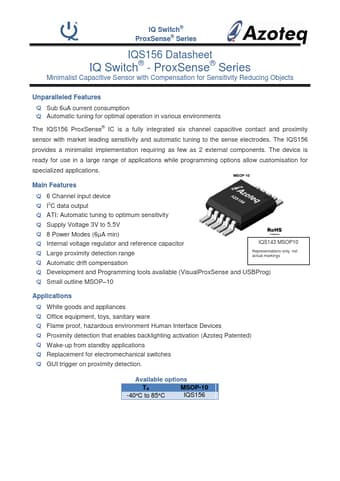

IQ Switch® ProxSense® Series IQS156 Datasheet IQ Switch® - ProxSense® Series Minimalist Capacitive Sensor with Compensation for Sensitivity Reducing O.
