SW-520 Datasheet - BAILIN

SW-520 Roll Ball Switch

BAILIN ELECTRONICS CO.,LTD SW-520 Roll Ball Switch Modelnumber:SW-520D BrandName:Beelee Type:Ball Material:Housing and cover: PE heat shrinkable tubing/ Ball: Stainless steel, gold-plated / Guide pin: Brass, gold-plated / Copper tube: Brass Shape:Round color:Black / Gray Electrical Characteristics: Contact Rating:12V Differential angle: Contact Resistance: <10 ohm InsulationResistance:>10M ohm

SW-520 Features

* 1.SW-520 istwo balls type single direction tilt sensitive trigger switch 2.When the products tilt to the cap terminaland the tilt angle is more than 10degree, it will be a opened circuit “OFF-stated”. When the products of horizontal placed tilt change, the trigger le

SW-520 Datasheet (101.96 KB)

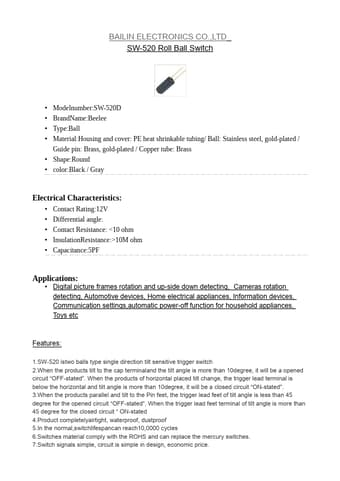

Preview of SW-520 PDF
SW-520 Datasheet Preview Page 2

Datasheet Details

Part number:

SW-520

Manufacturer:

BAILIN

File Size:

101.96 KB

Description:

Roll ball switch.
