BT240064

Graphic LCD Modules

BT240064 Features

* N Single 5V supply N Built-in display data RAM (32 kB) N Low power consumption N Mostly compatible to BT 42008 display/ BT 120032 N Built-in controller SED 1330 (1) PIN TABLE N High contrast and wide viewing angle N Low power consumtion N Light weight / compact dimensions N Driver HD 66204 (3) / HD

BT240064 General Description

The BT 240064 is a supertwist dot matrix LCD module with graphics capability. The module consists of a newly developed STN type LCD with high contrast, wide viewing angle, CMOS LCD driver, and controller. Since the control LSI has a built-in display data RAM, no external controller is necessary. I .

BT240064 Datasheet (46.33 KB)

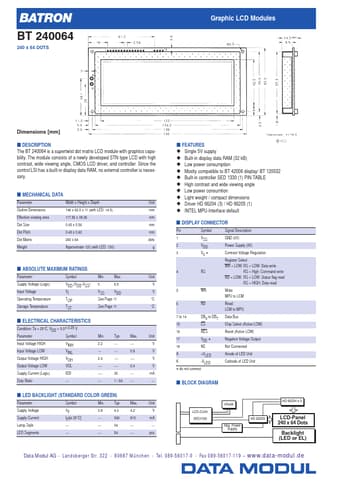

Preview of BT240064 PDF

Datasheet Details

Part number:

BT240064

Manufacturer:

BATRON

File Size:

46.33 KB

Description:

Graphic lcd modules.
