AP4310 - DUAL OP AMP AND VOLTAGE REFERENCE

Description

The AP4310 is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies.

The device contains two Op Amps and a 2.5V precision shunt voltage reference.

Features

increased precision with a corresponding reduction in system complexity and cost. The AP4310 is available in standard packages of DIP8 and SOIC-8. AP4310 Features Op Amp.
Input Offset Voltage: 0.5mV.
Supply Current: 75µA per Op Amp at 5.0V Supply Voltage.
Unity Gain Bandwidth: 1MHz.
Output Voltage Swing: 0 to (VCC -1.5) V.
Power Supply Range: 3 to 36V Voltage Reference.
Fixed Output Voltage Reference: 2.5V.
Voltage Tolerance: ± 0.4%, ± 1%.
Sink Current.

Datasheet Details

Part number	AP4310
Manufacturer	BCD Semiconductor
File Size	169.84 KB
Description	DUAL OP AMP AND VOLTAGE REFERENCE
Datasheet	AP4310 Datasheet
Additional preview pages of the AP4310 datasheet.

📁 Similar Datasheet

AP4310A - DUAL OP AMP AND VOLTAGE REFERENCE (Diodes)

AP4310E - DUAL OP AMP AND VOLTAGE REFERENCE (Diodes)

AP431 - ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes Incorporated)

AP431 - Adjustable Precision Shunt Regulator (Anachip)

AP4312 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes Incorporated)

AP4312Q - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP4313 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP431A - ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes Incorporated)

AP431A - Adjustable Precision Shunt Regulator (Anachip)

AP431I - LOW CATHODE CUREENT ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes)

Full PDF Text Transcription

Click to expand full text

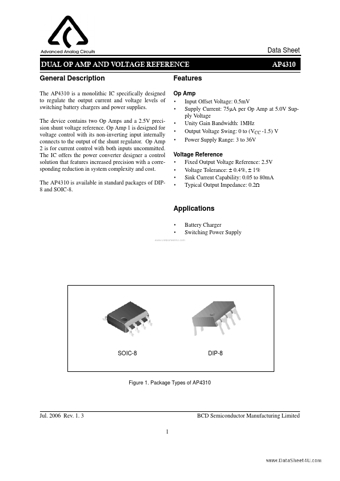

Data Sheet DUAL OP AMP AND VOLTAGE REFERENCE General Description The AP4310 is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies. The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control with its non-inverting input internally connects to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost. The AP4310 is available in standard packages of DIP8 and SOIC-8. AP4310 Features Op Amp · Input Offset Voltage: 0.
