Part number: AZ7500B
Manufacturer: BCD Semiconductor
File Size: 377.15KB
Download: 📄 Datasheet
Description: Pulse-Width-Modulation Controller
*
*
*
*
*
* Stable 4.95V/5V Reference Voltage Trimmed to ±1.0% Accuracy Uncommitted Output TR for 200mA Sink or Source Current Single-End or Push-.
*
*
* SMPS Back Light Inverter Charger
www.DataSheet4U.com
SOIC-16
DIP-16

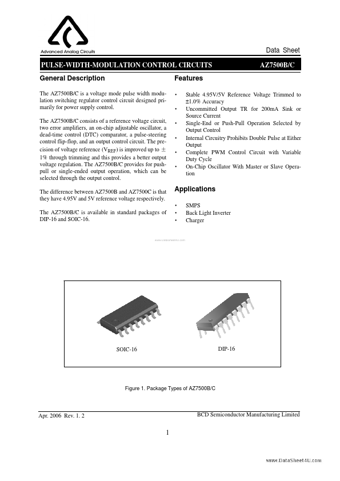

Figure 1. Package Types of AZ7.
The AZ7500B/C is a voltage mode pulse width modulation switching regulator control circuit designed primarily for power supply control. The AZ7500B/C consists of a reference voltage circuit, two error amplifiers, an on-chip adjustable oscillator, a d.
