AZ7805DTR, AZ78xx Datasheet - BCD Semiconductor

AZ7805DTR 3-TERMINAL POSITIVE LINEAR REGULATORS

The AZ78XX series are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make .

AZ7805DTR Features

* Output Current up to 1.0A Fixed Output Voltages of 5V, 6V, 8V, 9V and 12V Output Voltage Tolerances of 5% over the Full Temperature Range Internal Short Circuit Current-limiting Internal Thermal Overload Protection Applications

* Consumer Electronics Mi

AZ78xx_BCDSemiconductor.pdf

This datasheet PDF includes multiple part numbers: AZ7805DTR, AZ78xx. Please refer to the document for exact specifications by model.

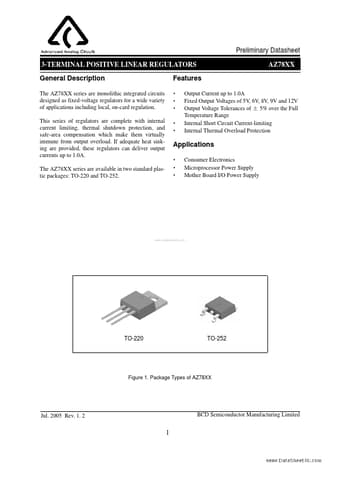

AZ7805DTR Datasheet Preview Page 2 AZ7805DTR Datasheet Preview Page 3

Datasheet Details

Part number:

AZ7805DTR, AZ78xx

Manufacturer:

BCD Semiconductor

File Size:

167.33 KB

Description:

3-terminal positive linear regulators.

Note:

This datasheet PDF includes multiple part numbers: AZ7805DTR, AZ78xx.
Please refer to the document for exact specifications by model.
