AA4003 Datasheet, Amplifier, BCD

AA4003 Features

  • Amplifier
  • Output Power, BTL: 2.0W/CH (4Ω, THD+N≤1%) SE: 160mW/CH (16Ω, THD+N≤1%) Supply Voltage Range: 2.7V to 5.5V External Feedback Loop for Flexible Gain Set-up Low Power Consumption

PDF File Details

Part number:

AA4003

Manufacturer:

BCD

File Size:

543.34kb

Download:

📄 Datasheet

Description:

2w stereo audio power amplifier. The AA4003 is a Class AB stereo Audio Power Amplifier which can deliver 2.0W into 4Ω speakers with limitation of THD+N less than 1%.

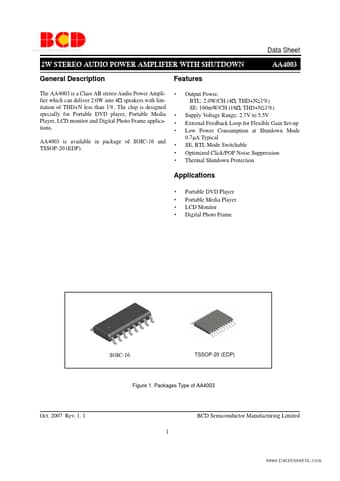

Datasheet Preview: AA4003 📥 Download PDF (543.34kb)
Page 2 of AA4003 Page 3 of AA4003

AA4003 Application

  • Applications AA4003 is available in package of SOIC-16 and TSSOP-20 (EDP). Features
  • Output Power, BTL: 2.0W/CH (4Ω, THD+N≤1%) SE: 160mW/
