AP2126 - EXTREMELY LOW NOISE CMOS LDO REGULATOR

Product Overview

BCD

📥 Download Datasheet

AP2126 EXTREMELY LOW NOISE CMOS LDO REGULATOR by BCD - Datasheet Preview — Datasheet preview – AP2126

Datasheet Details

Part number	AP2126
Manufacturer	BCD
File Size	483.67 KB
Description	EXTREMELY LOW NOISE CMOS LDO REGULATOR
Datasheet	AP2126 Datasheet

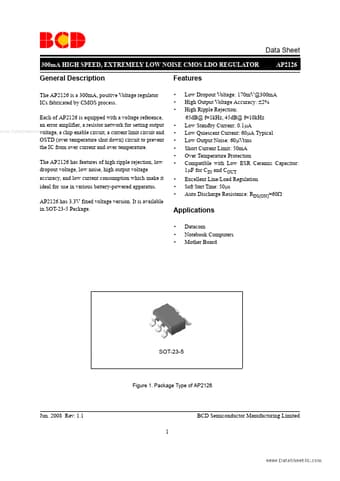

Additional preview pages of the AP2126 datasheet.

Product details

Description

The AP2126 is a 300mA, positive Voltage regulator ICs fabricated by CMOS process.

Features

of high ripple rejection, low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make it ideal for use in various battery-powered apparatus. AP2126 has 3.3V fixed voltage version. It is available in SOT-23-5 Package. Features.
Low Dropout Voltage: 170mV@300mA High Output Voltage Accuracy: ±2% High Ripple Rejection: 65dB@ f=1kHz, 45dB@ f=10kHz Low Standby Current: 0.1µA Low Quiescent C.
