BK4802N Datasheet - BEKEN

Analog Two-Way Radio-IC

BK4802N Features

* BK4802N BK4802N BK4802N EEPROM MCU Application 1 Application 2 Application 3 Figure2Several Applications using BK4802N As illustrated in the figure above, EEPROM can be introduced if the wanted channel is not included in these 16 built-in channels. BK4802N access EEPROM through 2 wires I2C

BK4802N General Description

BK4802N is a half duplex TDD FM/ASK transceiver IC designed for worldwide toy walkie-talkie and remote controller. It utilizes advanced CMOS technology, integrates a RF transceiver, FM/ASK Demodulation, FM/ASK Modulation, a Microphone Amplifier, an Audio Power Amplifier and a XTAL Oscillator. A hig.

BK4802N Datasheet (667.73 KB)

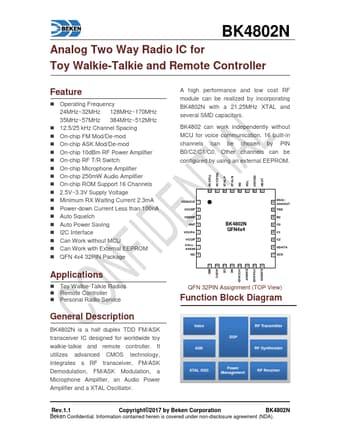

Preview of BK4802N PDF

Datasheet Details

Part number:

BK4802N

Manufacturer:

BEKEN

File Size:

667.73 KB

Description:

Analog two-way radio-ic.
