BL24C08F - 8192-bits EEPROM

BL24C08F Description

BL24C08F .
The BL24C08F provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 1024 words of 8 bits e.

BL24C08F Features

* Compatible with all I2C bidirectional data transfer protocol
* Memory array:
* 8K bits (1024 X 8) of EEPROM
* Page size: 16 bytes
* Single supply voltage and high speed:
* 1 MHz Random and sequential Read modes
* Write:
* Byte Write within 3 ms

BL24C08F Applications

* where low-power and low-voltage operation are essential. Pin Configuration ８-lead PDIP ８-lead SOP ８-lead TSSOP NC １ NC ２ A2 ３ GND ４ 8 VCC NC １ 7 WP NC ２ 6 SCL A2 ３ 5 SDA GND ４ 8 VCC NC １ 7 WP NC ２ 6 SCL A2 ３ 5 SDA GND ４ 8 VCC 7 WP 6 SCL 5 SDA ８-pad DFN NC 1 NC 2 A2 3 G

📥 Download Datasheet

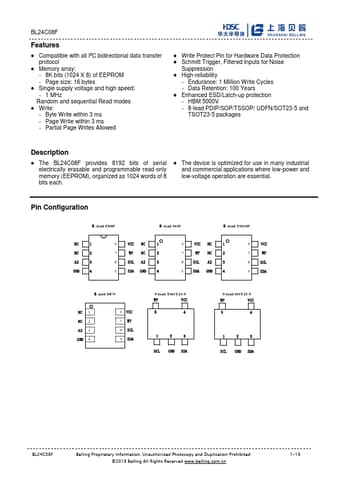

Preview of BL24C08F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL24C08F
Manufacturer
BELLING
File Size
416.22 KB
Datasheet
BL24C08F-BELLING.pdf
Description
8192-bits EEPROM
