BL24C64AA0 - 64K-bits EEPROM

BELLING

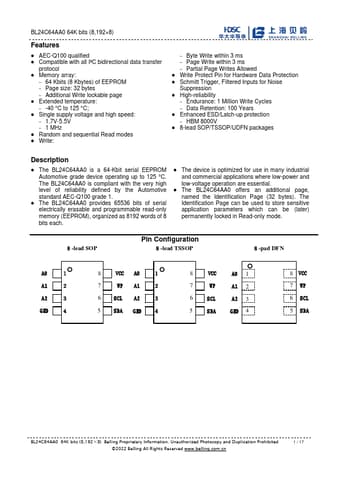

BL24C64AA0 Datasheet Preview — Preview of BL24C64AA0 PDF

Datasheet Details

Part number	BL24C64AA0
Manufacturer	BELLING
File Size	402.90 KB
Description	64K-bits EEPROM
Datasheet	BL24C64AA0-BELLING.pdf

BL24C64AA0 Product details

Description

The BL24C64AA0 is a 64-Kbit serial EEPROM Automotive grade device operating up to 125 °C. The BL24C64AA0 provides 65536 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 8192 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operati

Features

AEC-Q100 qualified.
Compatible with all I2C bidirectional data transfer protocol.
Memory array:.
64 Kbits (8 Kbytes) of EEPROM.
Page size: 32 bytes.
Additional Write lockable page.
Extended temperature:.
-40 °C to 125 °C;.
Single supply voltage and high speed:.
1.7V-5.5V.
1 MHz.
Random and sequential Read modes.
Write:.
Byte Write within 3 ms.
Page Write within 3 ms.
Partial Page.
