2CZ4005, 2CZ4004 Silicon Diode

BLUE ROCKET ELECTRONICS

2CZ4005 Description

2CZ400X Rev.F Mar.-2016 / .
SOD-123 。 Silicon Diode in a SOD-123 Plastic Package.

2CZ4005 Applications

* LED 、。 LED lighting, chargers and integrated energy-saving lamps and other rectifier circuit. / Equivalent Circuit / Pinning 1 2 PIN1:Cathode PIN2:Anode / hFE Classifications & Marking Model Marking 2CZ4004 HZ4 2CZ4005 HZ5 http://www. fsbrec. com 1/6 2CZ400X Rev. F Mar. -2016 DATA SHEET

📥 Download Datasheet

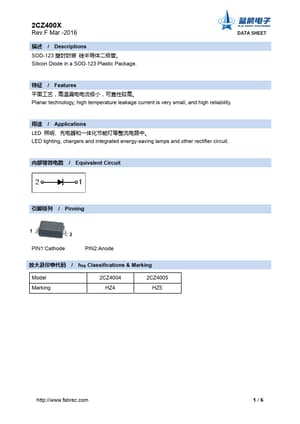

2CZ4005 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2CZ4005, 2CZ4004. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: 2CZ4005, 2CZ4004
Manufacturer: BLUE ROCKET ELECTRONICS
File Size: 536.35 KB
Datasheet: 2CZ4004-BLUEROCKETELECTRONICS.pdf
Description: Silicon Diode
Note: This datasheet PDF includes multiple part numbers: 2CZ4005, 2CZ4004.
Please refer to the document for exact specifications by model.
