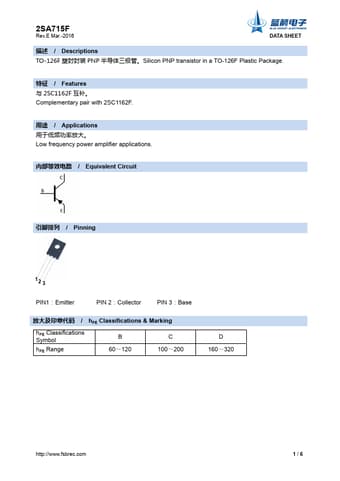

2SA715F Datasheet, Transistor, BLUE ROCKET ELECTRONICS

2SA715F Features

• Transistor 2SC1162F 。 Complementary pair with 2SC1162F. / Applications 。 Low frequency power amplifier applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector P

PDF File Details

Part number:

2SA715F

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

912.76kb

Download:

📄 Datasheet

Description:

Silicon pnp transistor. TO-126F PNP 。Silicon PNP transistor in a TO-126F Plastic Package.  / Features 2SC1162F 。 Complementary pair with 2SC1162F. /

2SA715F Application

• Applications 。 Low frequency power amplifier applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN 3：Base /
