BRCD3470, Synchronous Buck Converter

BRCD3470 Rev.D Oct.-2015 DATA SHEET / .
Synchronous Buck Converter in a SOT23-6 Plastic Package.

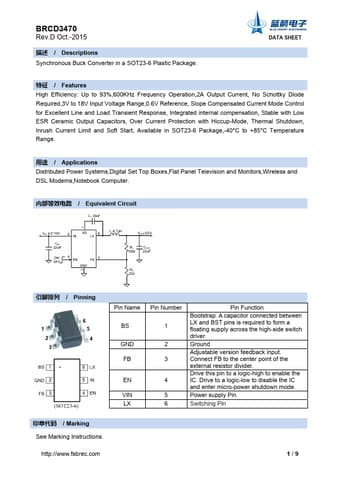

datasheet Preview Page 1 from Datasheet4u.com

BRCD3470-BLUEROCKETELECTRONICS.pdf

BRCD3470 Datasheet Preview — Preview of BRCD3470 PDF

Datasheet Details

Part number:

BRCD3470

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

759.50 KB

Description:

Synchronous Buck Converter

Features

* High Efficiency: Up to 93%,600KHz Frequency Operation,2A Output Current, No Schottky Diode Required,3V to 18V Input Voltage Range,0.6V Reference, Slope Compensated Current Mode Control for Excellent Line and Load Transient Response, Integrated internal compensation, Stable with Low ESR Ceramic Outpu

Applications

* Distributed Power Systems,Digital Set Top Boxes,Flat Panel Television and Monitors,Wireless and DSL Modems,Notebook Computer. / Equivalent Circuit / Pinning 1 2 3 6 5 4 Pin Name BS GND FB EN VIN LX Pin Number 1 2 3 4 5 6 Pin Function Bootstrap. A capacitor connected between LX and BST pins
