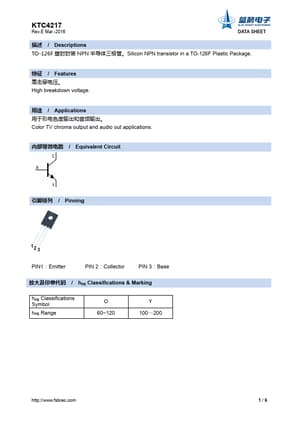

KTC4217 Datasheet, Transistor, BLUE ROCKET ELECTRONICS

KTC4217 Features

• Transistor 。 High breakdown voltage. / Applications 。 Color TV chroma output and audio out applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN 3：Base /

PDF File Details

Part number:

KTC4217

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

948.93kb

Download:

📄 Datasheet

Description:

Silicon npn transistor. TO-126F NPN 。Silicon NPN transistor in a TO-126F Plastic Package.  / Features 。 High breakdown voltage. / Applications 。 Col

KTC4217 Application

• Applications 。 Color TV chroma output and audio out applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN 3：Ba
