S8550MG Silicon PNP transistor

S8550MG Description

S8550MG Rev.E Mar.-2016 DATA SHEET / .
SOT-23 PNP 。Silicon PNP transistor in a SOT-23 Plastic Package.

S8550MG Applications

* 。 Power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range Marking B 85～160 GY4B C 120～200 GY4C D 160～300 GY4D http://www. fsbrec. com 1/6 S8550MG Rev. E Mar. -2016 /

📥 Download Datasheet

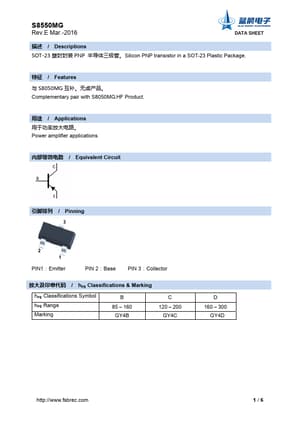

Preview of S8550MG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S8550MG
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
698.29 KB
Datasheet
S8550MG-BLUEROCKETELECTRONICS.pdf
Description
Silicon PNP transistor
