MC4004-04 - Standard LCD

📥 Download Datasheet

Datasheet preview – MC4004-04

Datasheet Details

Part number MC4004-04
Manufacturer BONA
File Size 71.71 KB
Description Standard LCD
Datasheet download datasheet MC4004-04 Datasheet
Additional preview pages of the MC4004-04 datasheet.

📁 Similar Datasheet

  • MC4004 - 16-Bit Scratch Pad Memory Cell (Motorola)
  • MC400 - 20 to 40 Volts 0.5 Amp Surface Mount Schottky Barrier Diode (MCC)
  • MC4000 - Dual 4-Channel Data Selector (Motorola)
  • MC4001 - BCD-To-Binary / Binary-To-BCD Number Converter (Motorola)
  • MC4002 - Dual Data Distributor (Motorola)
  • MC4005 - 16-Bit Scratch Pad Memory Cell (Motorola)
  • MC4006 - Binary to 1-of-8 Line Decoder (Motorola)
  • MC4007 - Dual Binary to 1-of-4 Line Decoder (Motorola)
  • MC4008 - 8-Bit Parity Tree (Motorola)
  • MC4010 - (MC4010 / MC4310) Dual 4-Bit Parity Tree (Motorola)
Other Datasheets by BONA

Full PDF Text Transcription

Click to expand full text

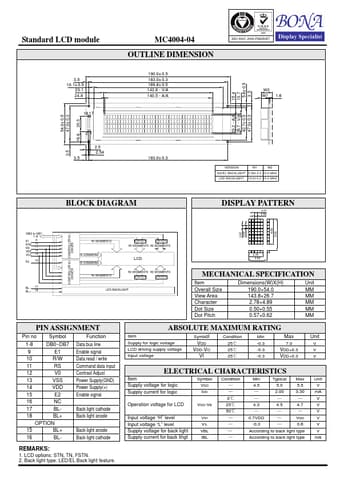

3.5 54.0± 0.5 47.0± 0.3 16.8 20.3 Standard LCD module 3.5 10.1± 0.5 23.1 24.8 18 17 21 2.5 2.54 3.5 MC4004-04 OUTLINE DIMENSION 190.0± 0.5 183.0± 0.3 169.8± 0.5 143.8 - V/A 140.5 - A/A ISO 9001:2000 FM86067 W2 W1 1.6 15.4 13.7 5.6± 0.5 3.5 23.2 - A/A 26.7 - V/A 42.7± 0.5 47.0± 0.3 183.0± 0.3 VERSION W1 W2 NO/EL BACKLIGHT 5.00± 0.5 10.0 MAX LED BACKLIGHT 10.0± 0.5 15.0 MAX BLOCK DIAGRAM DISPLAY PATTERN 0.57 0.50 0.62 0.55 4.89 6.09 DBO to DB7 1~8 E1 R/W RS VEE VCC 9 10 11 12 14 E2 15 BL- 17 BL+ 18 CONTROLLER IC/ CONTROLLER IC/ DRIVER DRIVER 40 SEGMENTS 16 COMMONS 16 COMMONS 40 SEGMENTS DRIVER DRIVER 80 SEGMENTS 80 SEGMENTS LCD 80 SEGMENTS 80 SEGMENTS DRIVER DRIVER LED BACKLIGHT 2.78 3.
