MPE-F40 Datasheet - BOSER Technology

MPE-F40 40W 85~264VAC AC-DC Open Frame Power-Supply

MPE-F40 Industrial Power Supply 40W 85~264VAC AC-DC Open Frame Power Supply AC-DC AC N AC L Vout(-) 4.32 5.08 Vout(+) Model No. MPE-F40-05 MPE-F40-12 MPE-F40-24 MPE-F40-48 Output Min. Voltage Load +5V 0A +12V 0A +24V 0A +48V 0A Rated Load 6A 3.34A 1.67A 0.834A Voltage Accuracy 4.9~5.1V 11.76~12.24V 23.5~24.5V 47.04~48.96V Specifications Input Voltage The range of input voltage is from 90~264VAC Input Frequency 47~63Hz Input Current The maximum input current is 0.65A at 115VAC or 0.32A at.

MPE-F40_BOSERTechnology.pdf

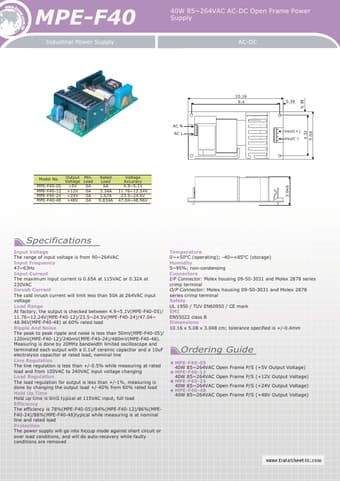

Preview of MPE-F40 PDF

Datasheet Details

Part number:

MPE-F40

Manufacturer:

BOSER Technology

File Size:

158.58 KB

Description:

40w 85~264vac ac-dc open frame power-supply.
