2027-A-07-SM Datasheet - BOURNS

2027-A-07-SM Precision Gas Discharge Tube Surge Protector

2027-A-07-SM Features

* n Surface mount for economical assembly n High surge current rating n Low capacitance and insertion loss n Stable breakdown throughout life n 8 mm diameter, 6 mm long n AEC-Q200 compliant n UL Recognized Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMP

2027-A-07-SM Datasheet (573.49 KB)

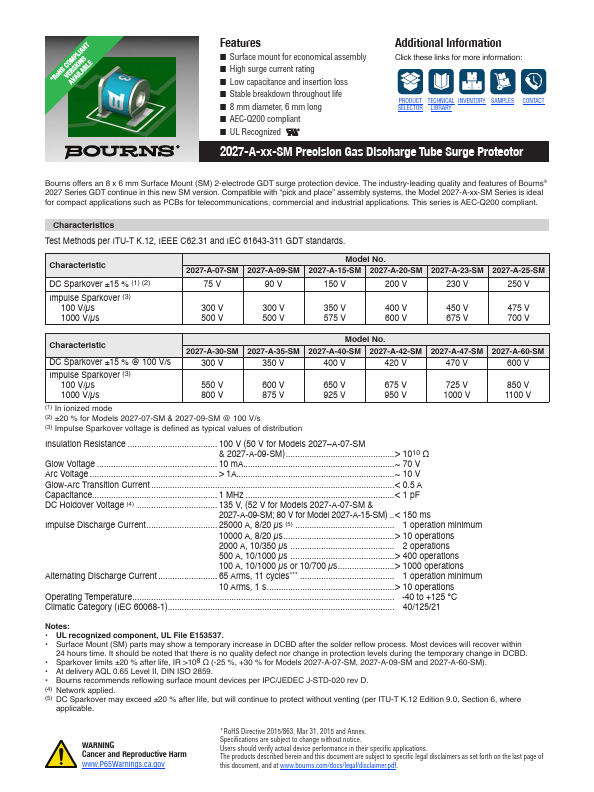

Preview of 2027-A-07-SM PDF

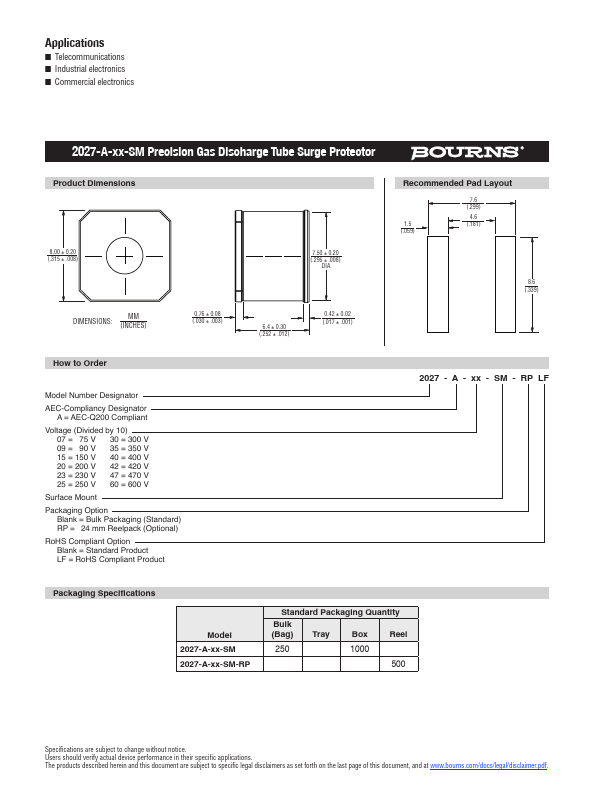

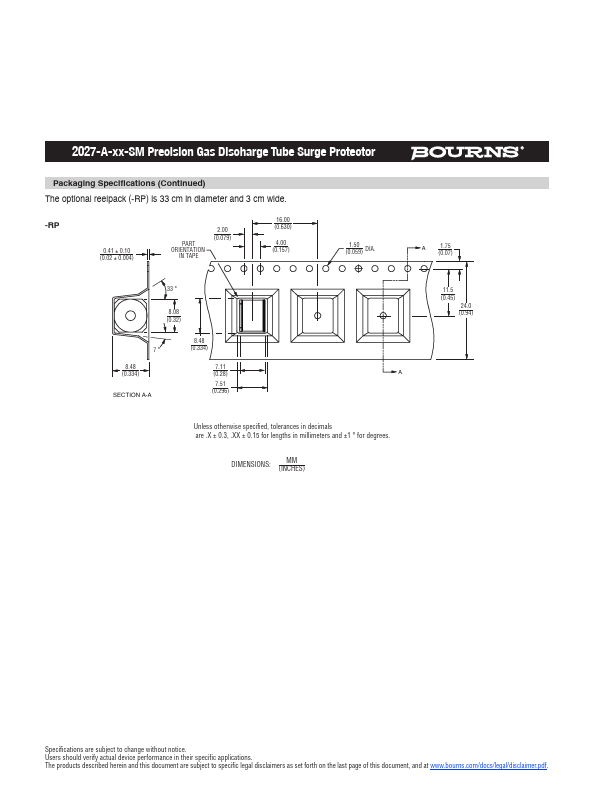

2027-A-07-SM Datasheet Preview Page 2 2027-A-07-SM Datasheet Preview Page 3

Datasheet Details

Part number:

2027-A-07-SM

Manufacturer:

BOURNS

File Size:

573.49 KB

Description:

Precision gas discharge tube surge protector.
