2045-30, 2045-07 - Medium Duty 2-Electrode Gas Discharge Tube

BOURNS

📥 Download Datasheet

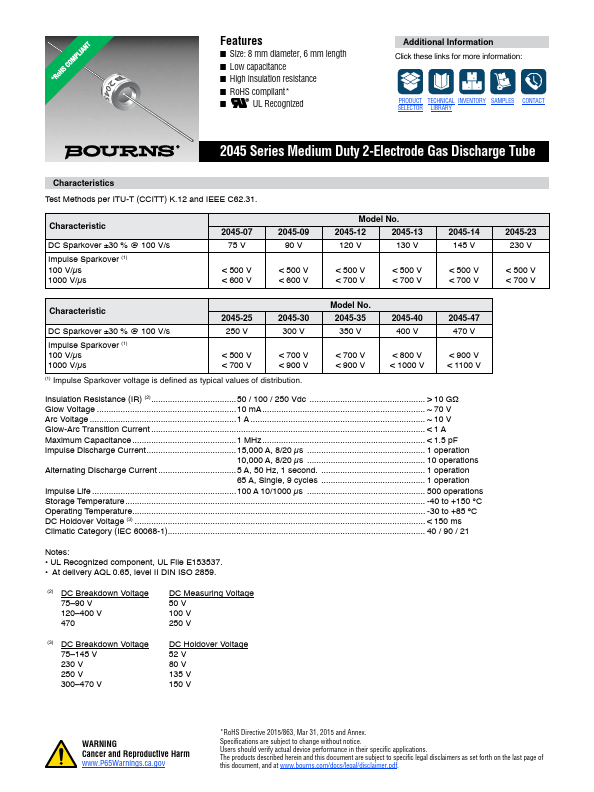

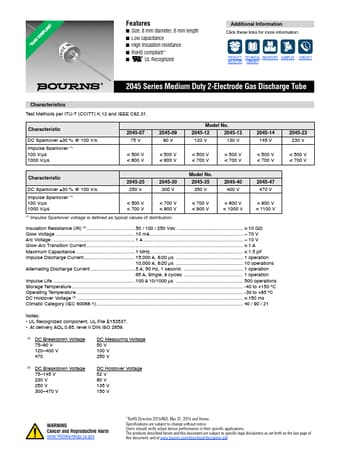

2045-30 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2045-30, 2045-07. Please refer to the document for exact specifications by model.

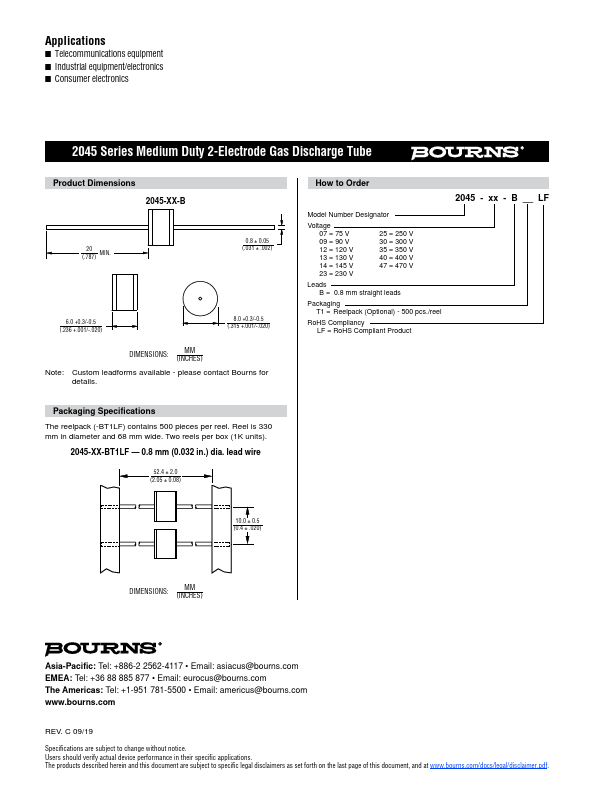

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2045-30, 2045-07
Manufacturer	BOURNS
File Size	147.26 KB
Description	Medium Duty 2-Electrode Gas Discharge Tube
Datasheet	2045-07-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: 2045-30, 2045-07. Please refer to the document for exact specifications by model.

2045-30 Product details

Features

Size: 8 mm diameter, 6 mm length.
Low capacitance.
High insulation resistance.
RoHS compliant.
UL Recognized Additional Information Click these links for more information:.
