5.0SMDJ14A-Q, 5.0SMDJ5.0A-Q - Transient Voltage Suppressor Diode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 5.0SMDJ14A-Q, 5.0SMDJ5.0A-Q. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 5.0SMDJ14A-Q, 5.0SMDJ5.0A-Q
Manufacturer BOURNS
File Size 599.71 KB
Description Transient Voltage Suppressor Diode
Datasheet download datasheet 5.0SMDJ5.0A-Q-BOURNS.pdf
Note This datasheet PDF includes multiple part numbers: 5.0SMDJ14A-Q, 5.0SMDJ5.0A-Q.
Please refer to the document for exact specifications by model.

5.0SMDJ14A-Q Product details

Description

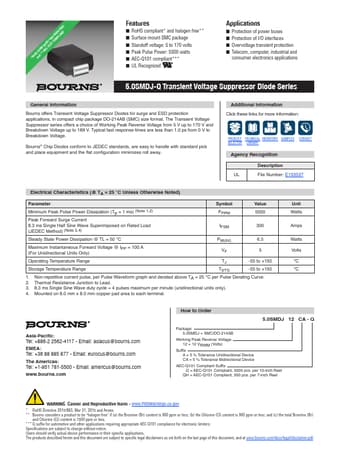

UL File Number: E153537 Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Value Minimum Peak Pulse Power Dissipation (Tp = 1 ms) (Note 1,2) Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3,4) PPPM IFSM 5000 300 Steady State Power Dissipation @ TL = 50 °C Maximum Instantaneous Forward Voltage @ IPP = 100 A (For Unidirectional Units Only) PM(AV) 6.5 VF 5 Operating Temperature Range TJ -55 to +
