5.0SMDJ6.5A, 5.0SMDJ5.0A Datasheet - BOURNS

5.0SMDJ6.5A Transient Voltage Suppressor Diode

UL File Number: E153537 Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Value Minimum Peak Pulse Power Dissipation (Tp = 1 ms) (Note 1,2) Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3,4) PPK IFSM 5.

5.0SMDJ6.5A Features

* RoHS compliant

* and halogen free

* Surface mount SMC package

* Standoff voltage: 5 to 170 volts

* Peak Pulse Power: 5000 watts

* Typical temperature coefﬁcient: ΔVBR = 0.1 % x VBR @ 25 °C x ΔT 5.0SMDJ Transient Voltage Suppressor Diode Series General Information

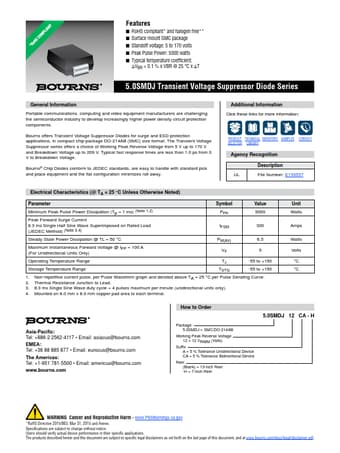

5.0SMDJ5.0A-BOURNS.pdf

5.0SMDJ6.5A Datasheet Preview — This datasheet PDF includes multiple part numbers: 5.0SMDJ6.5A, 5.0SMDJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

5.0SMDJ6.5A, 5.0SMDJ5.0A

Manufacturer:

BOURNS

File Size:

185.68 KB

Description:

Transient voltage suppressor diode.

Note:

This datasheet PDF includes multiple part numbers: 5.0SMDJ6.5A, 5.0SMDJ5.0A.
Please refer to the document for exact specifications by model.
