5.0SMDJ8.5A Datasheet - BOURNS

Transient Voltage Suppressor Diode

5.0SMDJ8.5A Features

* RoHS compliant

* and halogen free

* Surface mount SMC package

* Standoff voltage: 5 to 170 volts

* Peak Pulse Power: 5000 watts

* Typical temperature coefficient: ΔVBR = 0.1 % x VBR @ 25 °C x ΔT 5.0SMDJ Transient Voltage Suppressor Diode Series General Information

5.0SMDJ8.5A General Description

UL File Number: E153537 Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Value Minimum Peak Pulse Power Dissipation (Tp = 1 ms) (Note 1,2) Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3,4) PPK IFSM 5.

5.0SMDJ8.5A Datasheet (185.68 KB)

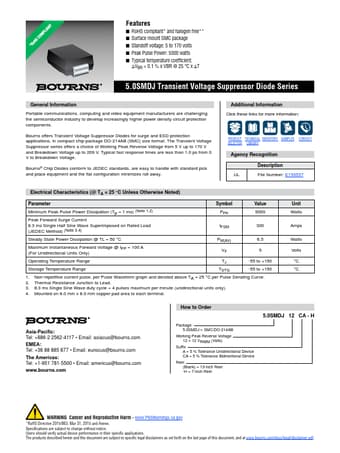

Preview of 5.0SMDJ8.5A PDF

Datasheet Details

Part number:

5.0SMDJ8.5A

Manufacturer:

BOURNS

File Size:

185.68 KB

Description:

Transient voltage suppressor diode.
