AA85AB0, AA82AB0 Datasheet - BOURNS

AA85AB0 - Breaker

File Number: E215638 (UL 60730) File Number: R50350207 (EN 60730-2-9) 0.7 ± 0.1 (.028 ± .004) 2.5 ± 0.1 (.098 ± .004) 0.2 ± 0.01 (.008 ± .0004) 0.7 ± 0.1 (.028 ± .004) 2.5 ± 0.1 (.098 ± .004) 3.75 ± 0.1 (.148 ± .004) MAX.

3.95 (.156) 0.2 ± 0.01 (.008 ± .0004) 0.37 ± 0.1 (.015 ± .004) 1.22

AA85AB0 Features

* n Formerly a ™ product n Miniature Thermal Cutoff (TCO) device n High current capacity, low impedance n Overtemperature and overcurrent protection for lithium polymer and prismatic cells n Controls abnormal, excessive current virtually instantaneously, up to

AA82AB0-BOURNS.pdf

This datasheet PDF includes multiple part numbers: AA85AB0, AA82AB0. Please refer to the document for exact specifications by model.

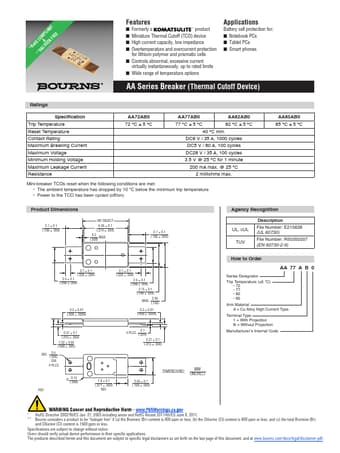

AA85AB0 Datasheet Preview Page 2 AA85AB0 Datasheet Preview Page 3

Datasheet Details

Part number:

AA85AB0, AA82AB0

Manufacturer:

BOURNS

File Size:

796.75 KB

Description:

Breaker.

Note:

This datasheet PDF includes multiple part numbers: AA85AB0, AA82AB0.
Please refer to the document for exact specifications by model.
