AC2213R - Air Coil Inductors

BOURNS

AC2213R Description

AC2213R Features

* n High Q value, self-resonant frequency n Tight tolerance n Epoxy cover for mechanical stability and pick & place n Surface mount n RoHS compliant

AC2213R Applications

* n High frequency TV and radio receivers n Radio transmitters n RF amplifiers n Tuning applications AC2213R Series
* Air Coil Inductors Electrical Specifications @ 25 °C Bourns Part Number AC2213R-1N6_ AC2213R-2N5_ AC2213R-3N8_ AC2213R-5N4_ Inductance L (nH) Tol. (%) Q Min. 1.65 ±5, ±

📥 Download Datasheet

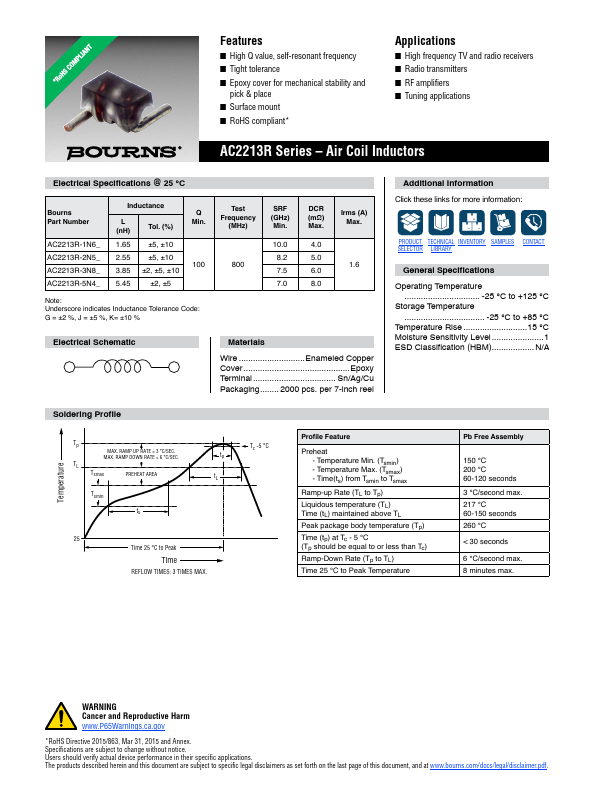

AC2213R Datasheet Preview — Preview of AC2213R PDF

Datasheet Details

Part number: AC2213R
Manufacturer: BOURNS
File Size: 664.42 KB
Datasheet: AC2213R-BOURNS.pdf
Description: Air Coil Inductors
