AC3630R Air Coil Inductors

BOURNS

AC3630R Description

AC3630R Features

* n High Q value, self-resonant frequency n Tight tolerance n Epoxy cover for mechanical stability and pick & place n Surface mount n RoHS compliant

AC3630R Applications

* n High frequency TV and radio receivers n Radio transmitters n RF amplifiers n Tuning applications AC3630R Series
* Air Coil Inductors Electrical Specifications @ 25 °C Bourns Part Number Inductance L (nH) Tol. (%) Q Min. Test Frequency (MHz) SRF (GHz) Min. AC3630R-2N5_ 2.5 ±10

📥 Download Datasheet

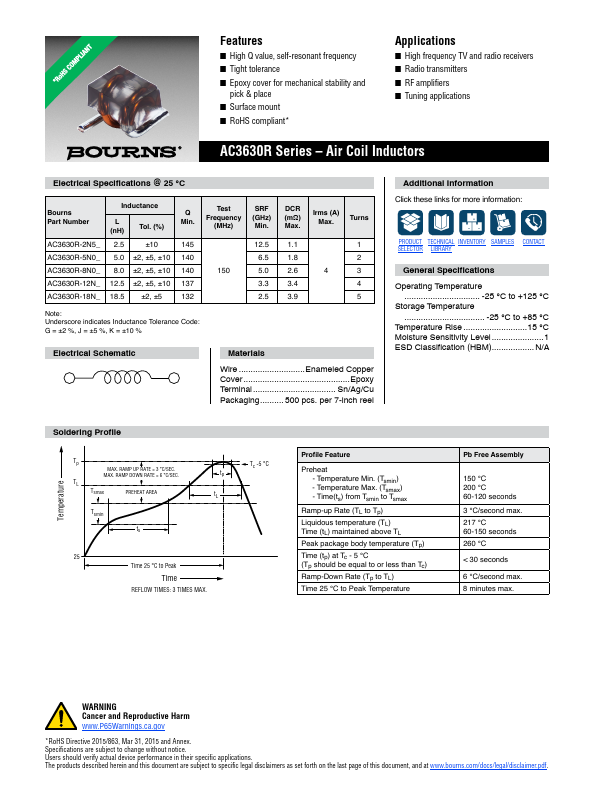

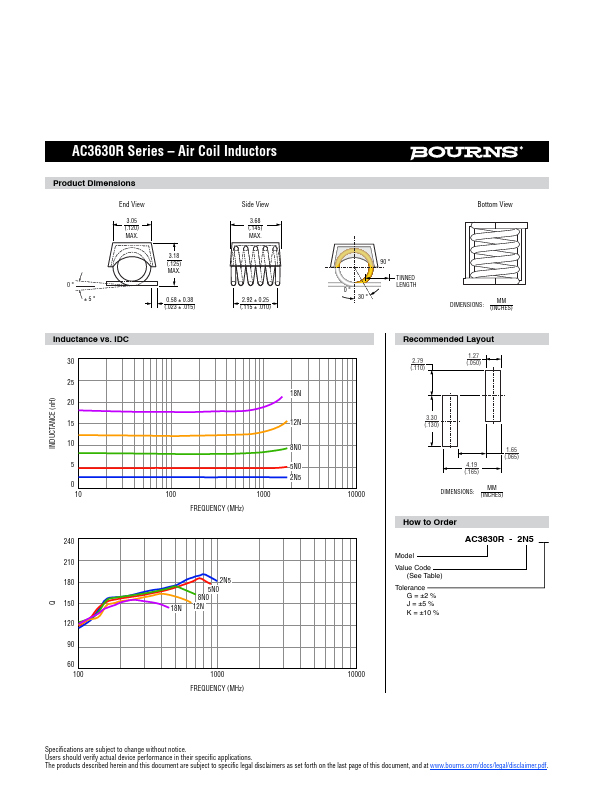

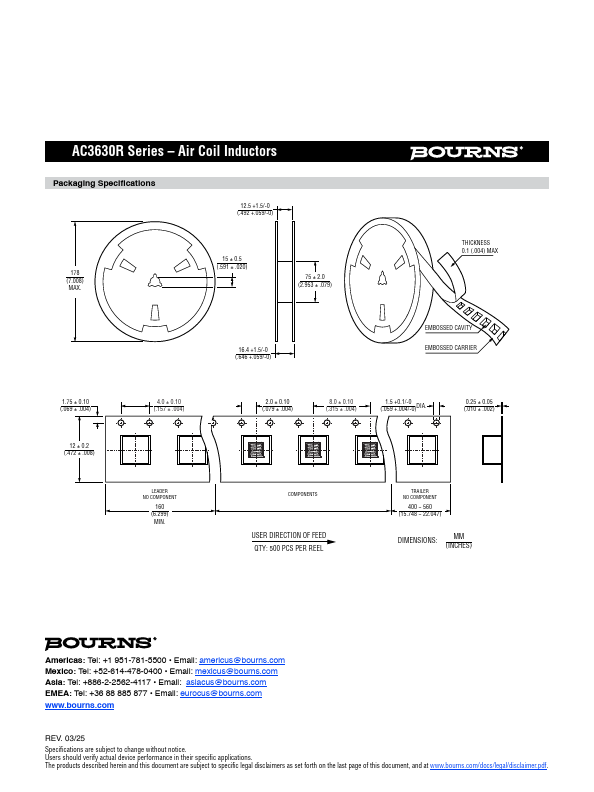

AC3630R Datasheet Preview — Preview of AC3630R PDF

Datasheet Details

Part number: AC3630R
Manufacturer: BOURNS
File Size: 666.03 KB
Datasheet: AC3630R-BOURNS.pdf
Description: Air Coil Inductors
