*RoHS COMPLIANT
Features
■ Lead free as standard ■ RoHS compliant* ■ Halogen free** ■ ESD protection >25 kV ■ Protects Vcc and two data lines
Applications
■ Ethernet - 10/100/1000 Base T ■ Firewire and USB ■ Portable electronics ■ Video/graphic cards

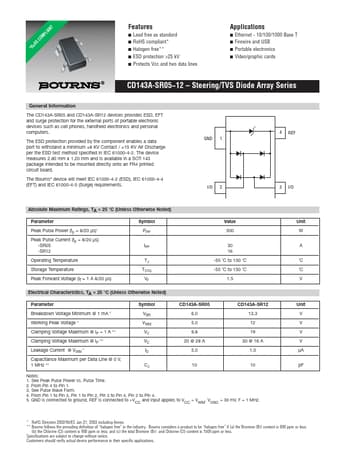

CD143A-SR05~12 – Steering/TVS Diode Array Series
General Information
The CD143A-SR05 and CD143A-SR12 devices provides ESD, EFT and surge protection for the external ports of portable electronic devices such as cell phones, handheld electronics and personal computers.
The ESD protection provided by the component enables a data port to withstand a minimum ±8 KV Contact / ±15 KV Air Discharge per the ESD test method specified in IEC 61000-4-2. The device measures 2.80 mm x 1.
