CD214A Transient Voltage Suppressor Diode

CD214A Description

*RoHS COMPLIANT .

CD214A Features

* Lead free RoHS compliant
* Surface Mount SMA package Standoff Voltage: 5.0 to 170 volts Power Dissipation: 400 watts Model CD214A is currently available, although not recommended for new designs. Model SMAJ is preferred. CD214A Transient Voltage Suppressor Diode Series General Information The

CD214A Applications

* in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 170 V and Breakdown Voltage up to 200 V. Typical fast response times are less than 1.0 ns for unidirectional devices and less than 5.0 ns for bi

📥 Download Datasheet

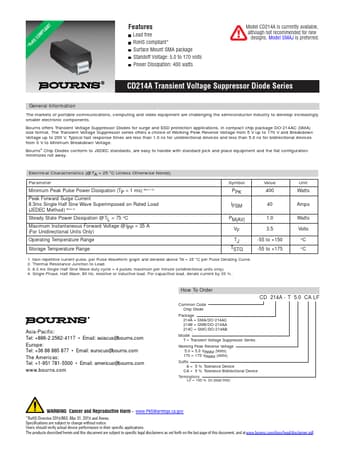

Preview of CD214A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD214A
Manufacturer
BOURNS
File Size
143.29 KB
Datasheet
CD214A-BOURNS.pdf
Description
Transient Voltage Suppressor Diode
