CMP2512, CMP0603 High Power Anti-Surge Chip Resistors

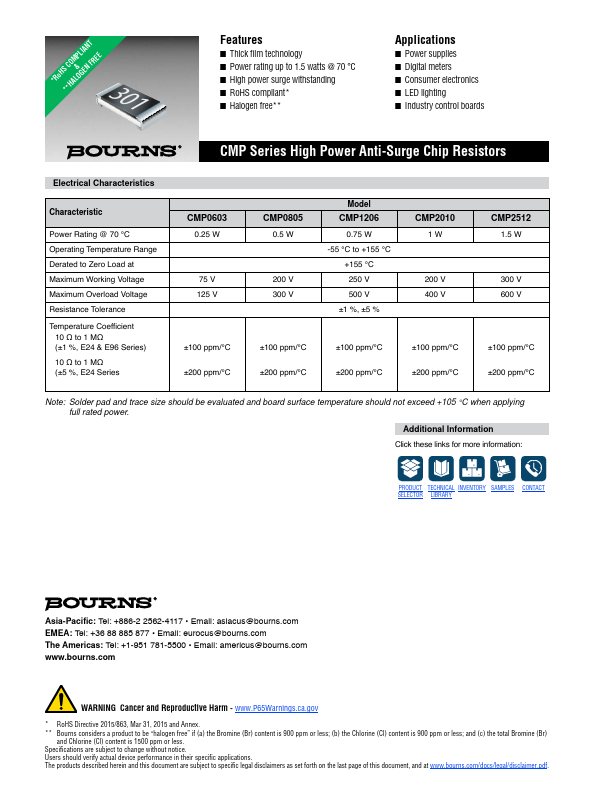

📥 Download Datasheet Datasheet Preview Page 1

Description

301 *RoHS * *CHOAML&POLGIAENNTFREE .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CMP2512, CMP0603. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CMP2512, CMP0603
Manufacturer
BOURNS
File Size
231.91 KB
Datasheet
CMP0603-BOURNS.pdf
Description
High Power Anti-Surge Chip Resistors
Note
This datasheet PDF includes multiple part numbers: CMP2512, CMP0603.
Please refer to the document for exact specifications by model.

Features

* Thick film technology
* Power rating up to 1.5 watts @ 70 °C
* High power surge withstanding
* RoHS compliant
* Halogen free

Applications

* Power supplies
* Digital meters
* Consumer electronics
* LED lighting
* Industry control boards CMP Series High Power Anti-Surge Chip Resistors Electrical Characteristics Characteristic Power Rating @ 70 °C Operating Temperature Range Derated to Zero Load at Maximum Working V
