CRL2010, CRL0603 - Low Value Chip Resistors

BOURNS

📥 Download Datasheet

CRL2010 Datasheet Preview — This datasheet PDF includes multiple part numbers: CRL2010, CRL0603. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CRL2010, CRL0603
Manufacturer	BOURNS
File Size	710.28 KB
Description	Low Value Chip Resistors
Datasheet	CRL0603-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: CRL2010, CRL0603. Please refer to the document for exact specifications by model.

CRL2010 Product details

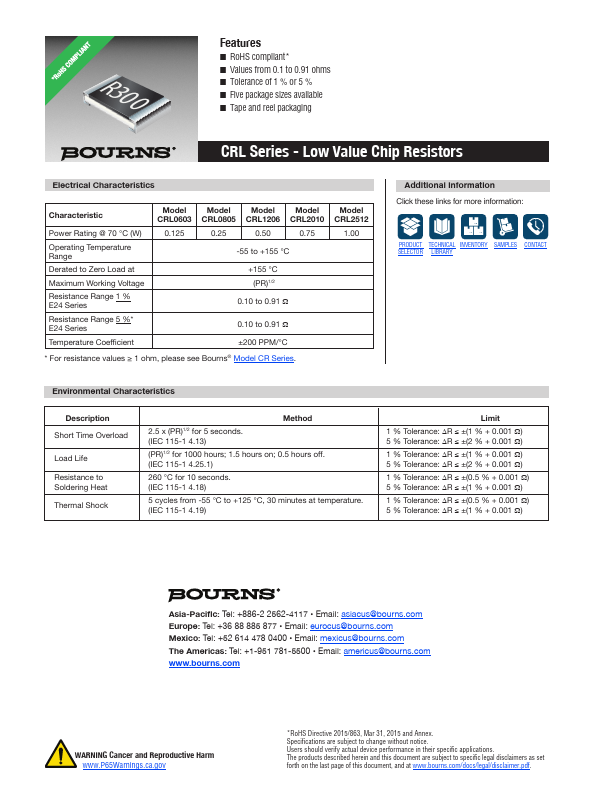

Description

Short Time Overload Load Life Resistance to Soldering Heat Thermal Shock Method 2.5 x (PR)1/2 for 5 seconds.(IEC 115-1 4.13) (PR)1/2 for 1000 hours; 1.5 hours on; 0.5 hours off.(IEC 115-1 4.25.1) 260 °C for 10 seconds.(IEC 115-1 4.18) 5 cycles from -55 °C to +125 °C, 30 minutes at temperature.(IEC 115-1 4.19) Limit 1 % Tolerance: DR ≤ ±(1 % + 0.001 W) 5 % Tolerance: DR ≤ ±(2 % + 0.001 W) 1 % Tolerance: DR ≤ ±(1 % + 0.001 W) 5 % Tolerance: DR ≤ ±(2 % + 0.001 W) 1 % Tolerance: DR ≤ ±(0

Features

n RoHS compliant.
n Values from 0.1 to 0.91 ohms n Tolerance of 1 % or 5 % n Five package sizes available n Tape and reel packaging CRL Series - Low Value Chip Resistors Electrical Characteristics Characteristic Power Rating @ 70 °C (W) Operating Temperature Range Derated to Zero Load at Maximum Working Voltage Resistance Range 1 % E24 Series Resistance Range 5 %.
E24 Series Temperature Coefficient Model CRL0603 0.125 Model CRL0805 0.25 Model CRL1206 0.50 Model CRL2010 0.75 -55 t.
