Part number:
GMOV-14D171K
Manufacturer:
BOURNS
File Size:
760.31 KB
Description:

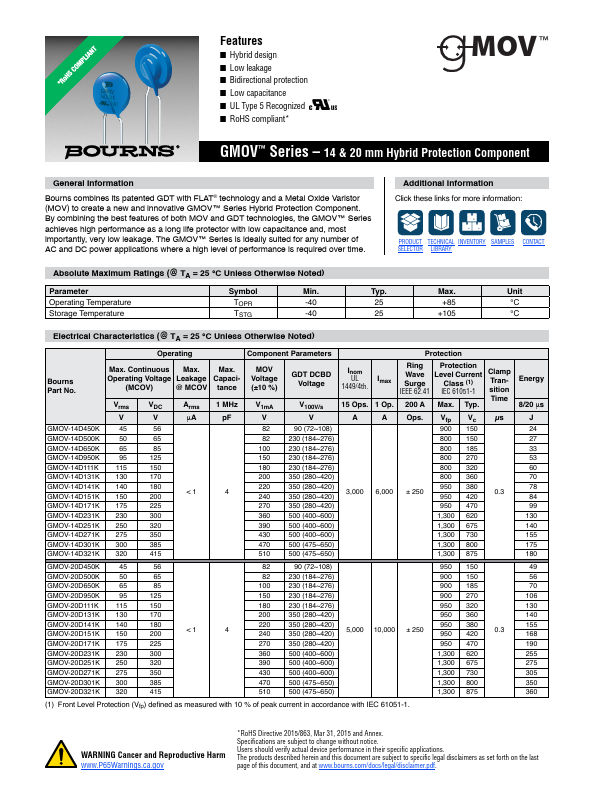

14 & 20 mm hybrid protection component.
* n Hybrid design n Low leakage n Bidirectional protection n Low capacitance n UL Type 5 Recognized n RoHS compliant
* MOV™ GMOV™ Series - 14 & 20 mm Hybrid Protection Component General Information Bourns combines its patented GDT with FLAT® technology and a Metal Oxide Varistor (MOV) to
GMOV-14D171K Datasheet (760.31 KB)
GMOV-14D171K
BOURNS
760.31 KB
14 & 20 mm hybrid protection component.
