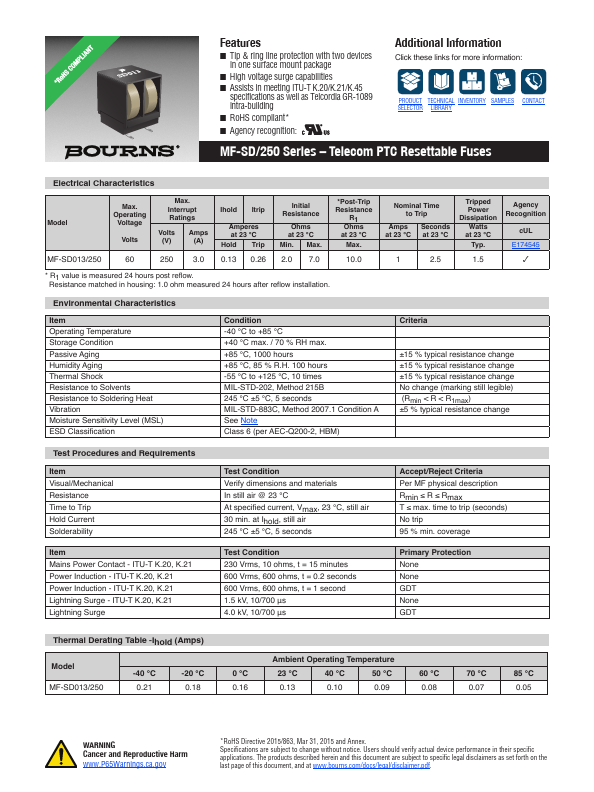

Preview of MF-SD013 PDF

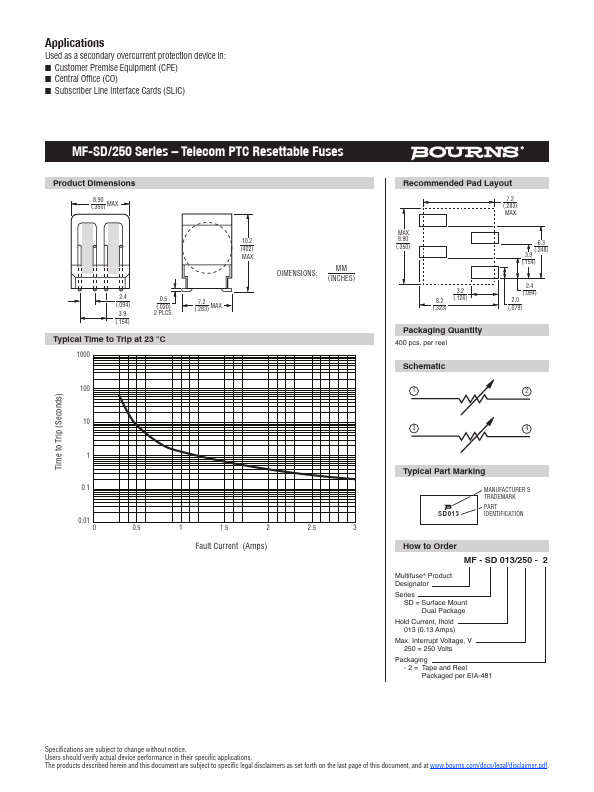

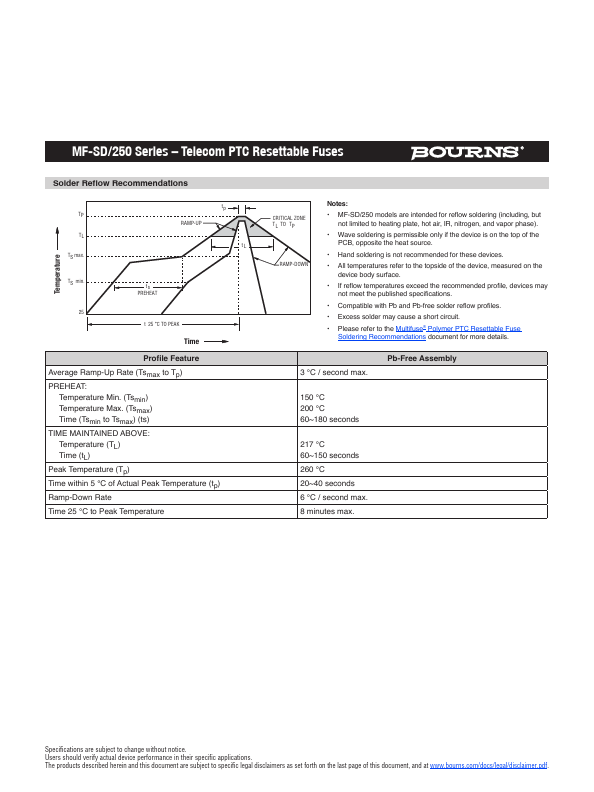

MF-SD013 Datasheet Preview Page 2 MF-SD013 Datasheet Preview Page 3

Datasheet Details

Part number:

MF-SD013

Manufacturer:

BOURNS

File Size:

692.13 KB

Description:

Telecom ptc resettable fuses.

MF-SD013, Telecom PTC Resettable Fuses

Rmin ≤ R ≤ Rmax T ≤ max.

time to trip (seconds) No trip 95 % min.

coverage Item Mains Power Contact - ITU-T K.20, K.21 Power Induction - ITU-T K.20, K.21 Power Induction - ITU-T K.20, K.21 Lightning Surge - ITU-T K.20, K.21 Lightning Surge Test Condition 230 Vrms, 10 ohms, t = 15 minutes 600 Vrms,

MF-SD013 Features

* n Tip & ring line protection with two devices in one surface mount package n High voltage surge capabilities n Assists in meeting ITU-T K.20/K.21/K.45 specifications as well as Telcordia GR-1089 intra-building n RoHS compliant

* n Agency recognition: Additional Information Click these links for
