PM7518

SMT Power Inductors

PM7518 Features

* Low DCR

* Ferrite toroid core for low radiation

* Low loss PM7518-100M-RC 10 PM7518-150M-RC 15 PM7518-220M-RC 22 PM7518-330M-RC 33 PM7518-470M-RC 47 0.240 0.300 0.360 0.556 0.833

* High operating frequency

* Ultra-low profile and compact size “-R

PM7518 Datasheet (623.22 KB)

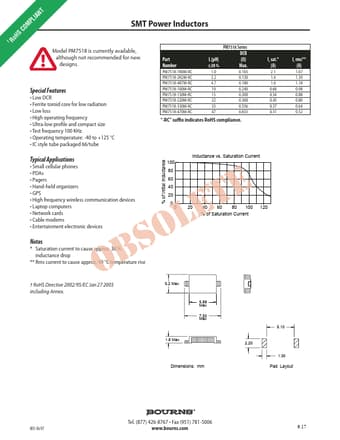

Preview of PM7518 PDF

Datasheet Details

Part number:

PM7518

Manufacturer:

BOURNS

File Size:

623.22 KB

Description:

Smt power inductors.
† RoHS COMPLIANT SMT Power Inductors Model PM7518 is currently available, although not recommended for new designs. Part Number PM7518 Series DCR.
