Features
n Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n RoHS compliant* n For trimmer applications/processing guidelines, click here

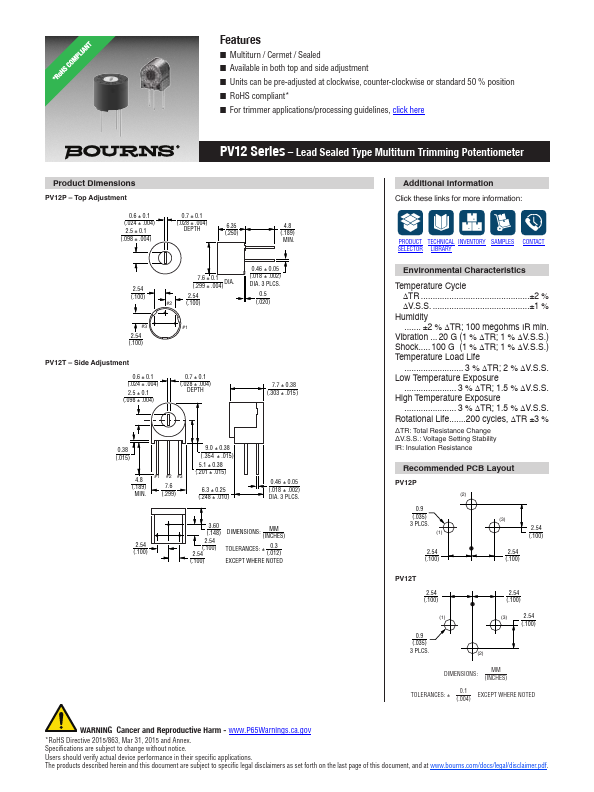

PV12 Series – Lead Sealed Type Multiturn Trimming Potentiometer
Product Dimensions
PV12P – Top Adjustment
0.6 ± 0.1 (.024 ± .004) 2.5 ± 0.1 (.098 ± .004)
0.7 ± 0.1 (.028 ± .004)
DEPTH
6.35 (.250)
4.8 (.189) MIN.
2.54 (.100)
0.46 ± 0.05
7.6 (.299
± ±
0.1 .004)
DIA.
(.018 ± .002) DIA. 3 PLCS.
2.54 #2 (.100)
0.5 (.020)
#3
2.54 (.100)
PV12T – Side Adjustment
0.6 ± 0.1 (.024 ± .004) 2.5 ± 0.1 (.098 ± .004)
#1
0.7 ± 0.1 (.028 ± .004)
DEPTH
7.7 ± 0.38 (.303 ± .015)
0.38 (.015)
4.8 (.189) MIN.
#1 #2 #3
7.6 (.299)
9.0 ± 0.38 ( .
