PV36W100C01B00 Datasheet - BOURNS

PV36W100C01B00, Trimmer Potentiometers

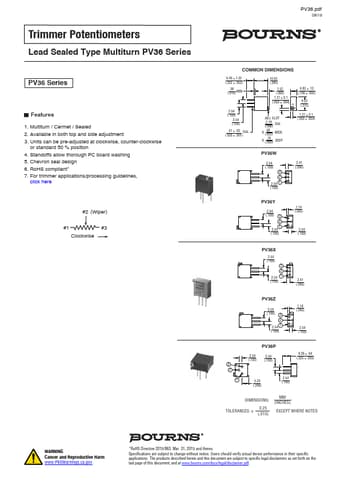

Trimmer Potentiometers Lead Sealed Type Multiturn PV36 Series PV36 Series .

datasheet Preview Page 1 from Datasheet4u.com

PV36W100C01B00-BOURNS.pdf

PV36W100C01B00 Datasheet Preview — Preview of PV36W100C01B00 PDF

Datasheet Details

Part number:

PV36W100C01B00

Manufacturer:

BOURNS

File Size:

1.14 MB

Description:

Trimmer Potentiometers

Features

* 1. Multiturn / Cermet / Sealed 2. Available in both top and side adjustment 3. Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position 4. Standoffs allow thorough PC board washing 5. Chevron seal design 6. RoHS compliant

Applications

* processing guidelines, click here #2 (Wiper) #1 #3 Clockwise PV36.pdf 08/19 COMMON DIMENSIONS 6.40 ± 1.32 (.252 ± .052) .38 (.015) MIN. 2.54 (.100) 2.54 (.100) .51 ± .03 DIA. (.020 ± .001) 10.03 (.395) 1.52 (.060) 1.27 ± 0.1 (.050 ± .004) ADJ. SLOT 2.19 (.086) DIA. X .56 (.022) WIDE X
