PV37W103C01B00 - Multiturn Trimming Potentiometer

PV37W103C01B00 Features

* n Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n Standoffs allow thorough PC board washing n RoHS compliant

* n For trimmer applications/processing guidelines, click here PV37 Series

PV37W100C01B00-BOURNS.pdf

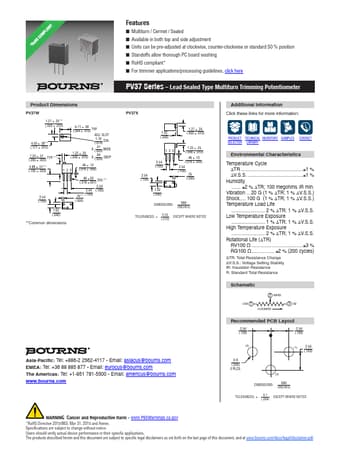

PV37W103C01B00 Datasheet Preview — This datasheet PDF includes multiple part numbers: PV37W103C01B00, PV37W100C01B00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PV37W103C01B00, PV37W100C01B00

Manufacturer:

BOURNS

File Size:

543.96 KB

Description:

Multiturn trimming potentiometer.

Note:

This datasheet PDF includes multiple part numbers: PV37W103C01B00, PV37W100C01B00.
Please refer to the document for exact specifications by model.
