PVG3K205C01, PVG3A100C01, Trimmer Potentiometers

PVG3.pdf 08/19 Trimmer Potentiometers SMD Sealed Type Single-Turn PVG3 Series .

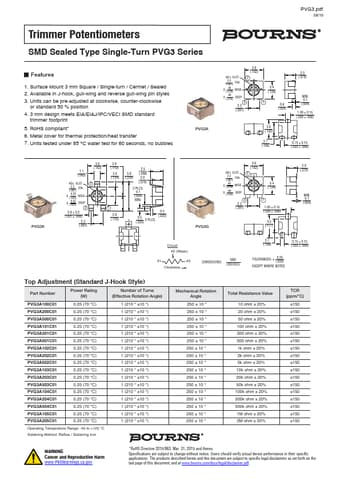

datasheet Preview Page 1 from Datasheet4u.com

PVG3A100C01-BOURNS.pdf

PVG3K205C01 Datasheet Preview — This datasheet PDF includes multiple part numbers: PVG3K205C01, PVG3A100C01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PVG3K205C01, PVG3A100C01

Manufacturer:

BOURNS

File Size:

1.12 MB

Description:

Trimmer Potentiometers

Note:

This datasheet PDF includes multiple part numbers: PVG3K205C01, PVG3A100C01.
Please refer to the document for exact specifications by model.

Features

* 1. Surface Mount 3 mm Square / Single-turn / Cermet / Sealed 2. Available in J-hook, gull-wing and reverse gull-wing pin styles 3. Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position 4. 3 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint 5. RoHS complia

Applications

* The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. PVG3.pdf 08/19 Top Adjustment (Gull-Wing Style) Part Number Power Rating (W) PVG3G100C01 0.25 (70 °C) PVG3
