PVG5A202C03R00, PVG5A100C03R00 Datasheet - BOURNS

PVG5A202C03R00, PVG5A100C03R00, Multiturn Trimming Potentiometer

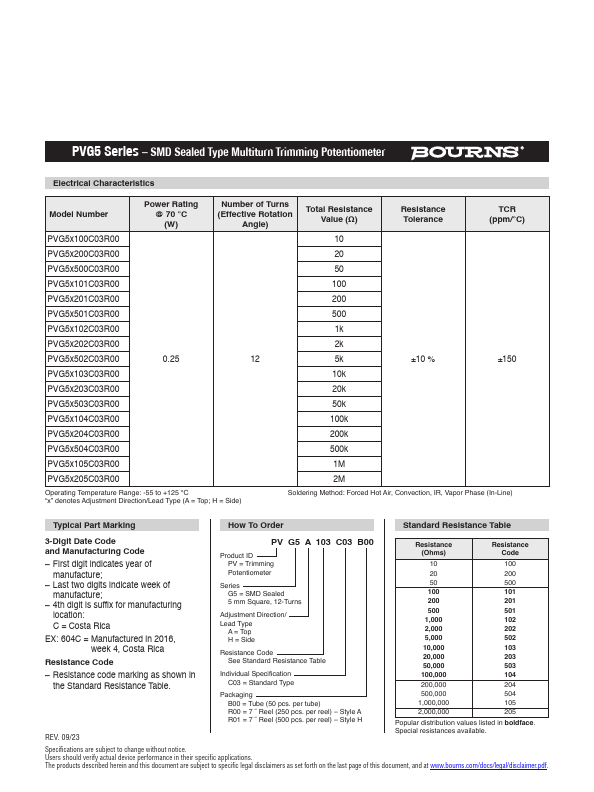

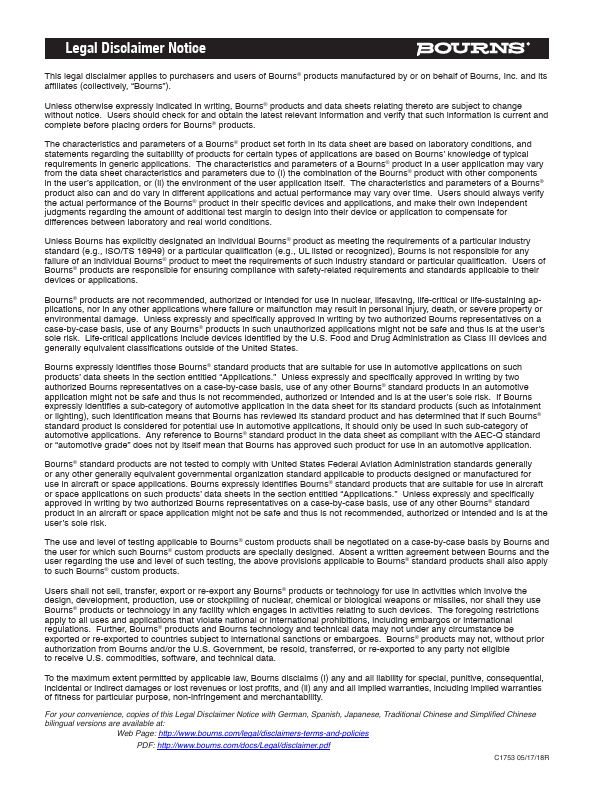

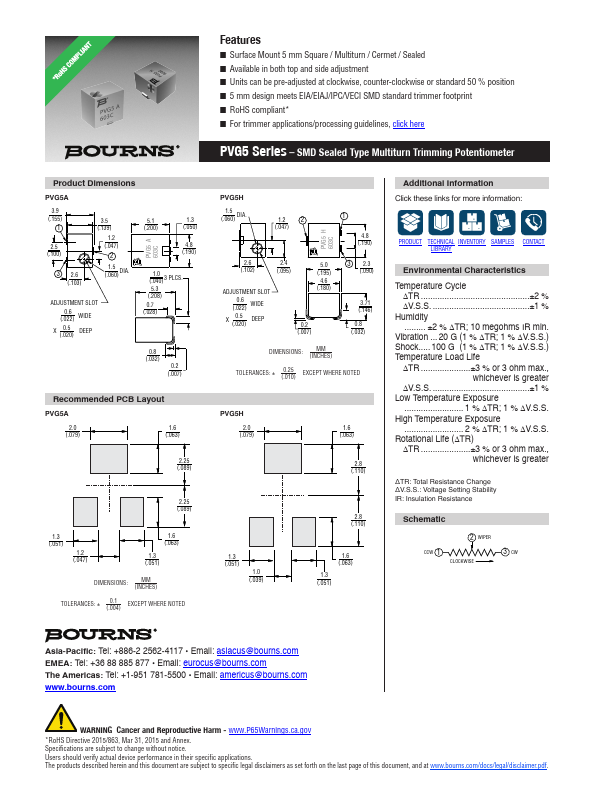

 Datasheet Preview Page 1 PVG5A202C03R00 Datasheet Preview Page 2  Datasheet Preview Page 3

Features

* n Surface Mount 5 mm Square / Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n 5 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n RoHS compliant
* n For trimmer applica

Applications

* processing guidelines, click here PVG5 Series
* SMD Sealed Type Multiturn Trimming Potentiometer Product Dimensions PVG5A 3.9 (.155) 1 2.5 (.100) 3.5 (.139) 1.2 (.047) 2 5.1 (.200) 1.3 (.050) 4.8 (.190) 3 2.6 (.103) 1.5 DIA. (.060) ADJUSTMENT SLOT 0.6 (.022) WIDE X 0.5 (.020) D

PVG5A100C03R00-BOURNS.pdf

This datasheet PDF includes multiple part numbers: PVG5A202C03R00, PVG5A100C03R00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PVG5A202C03R00, PVG5A100C03R00

Manufacturer:

BOURNS

File Size:

650.87 KB

Description:

Multiturn trimming potentiometer.

Note:

This datasheet PDF includes multiple part numbers: PVG5A202C03R00, PVG5A100C03R00.
Please refer to the document for exact specifications by model.

PVG5A202C03R00 Distributors

📁 Related Datasheet

📌 All Tags

BOURNS PVG5A202C03R00-like datasheet

PVG5A202C03R00 Stock/Price

Distributor
Bourns Inc
PVG5A202C03R00
Resistor Trimmer, Cermet, 2 kOhm, ? 10%, 250 mW, 12 Turn, Multi Turn, Surface Mount - Product that comes on tape, but is not reeled (Alt: 34AK1600)
Avnet Americas
0 In Stock
Qty : 1 units
Unit Price : $2.94
