PVG5A500C03R00, PVG5A100C03R00 Datasheet - BOURNS

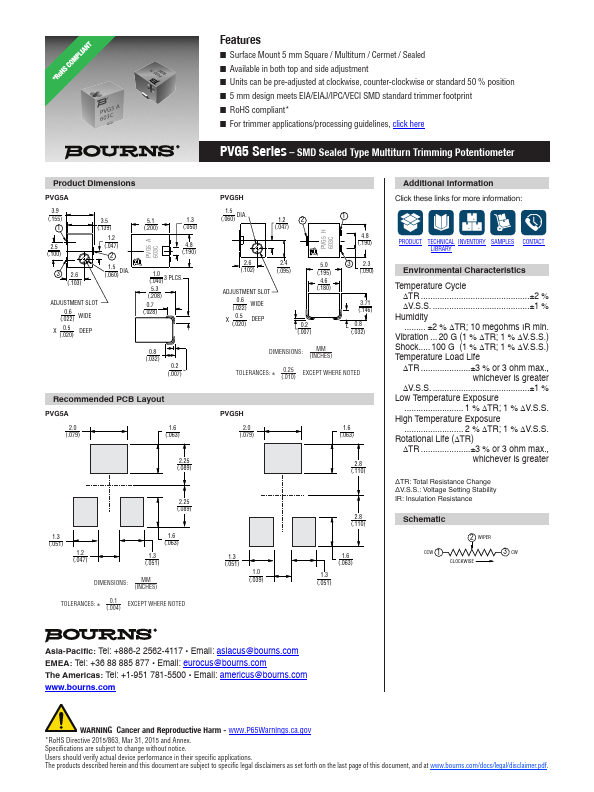

PVG5A500C03R00 Multiturn Trimming Potentiometer

PVG5A500C03R00 Features

* n Surface Mount 5 mm Square / Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n 5 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n RoHS compliant

* n For trimmer applica

PVG5A100C03R00-BOURNS.pdf

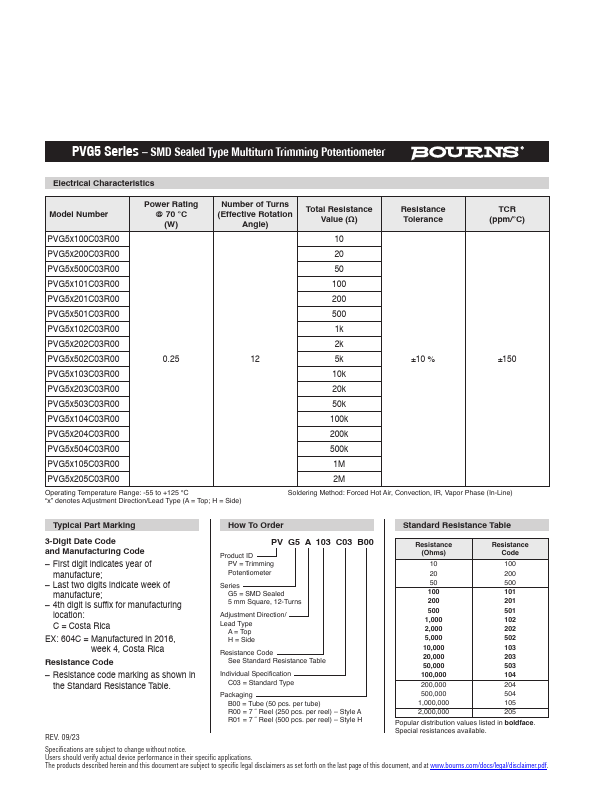

PVG5A500C03R00 Datasheet Preview — This datasheet PDF includes multiple part numbers: PVG5A500C03R00, PVG5A100C03R00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PVG5A500C03R00, PVG5A100C03R00

Manufacturer:

BOURNS

File Size:

650.87 KB

Description:

Multiturn trimming potentiometer.

Note:

This datasheet PDF includes multiple part numbers: PVG5A500C03R00, PVG5A100C03R00.
Please refer to the document for exact specifications by model.
