PVG5H501C03B00, PVG5A100C03R00 Multiturn Trimming Potentiometer

PVG5H501C03B00 Description

.

PVG5H501C03B00 Features

* n Surface Mount 5 mm Square / Multiturn / Cermet / Sealed n Available in both top and side adjustment n Units can be pre-adjusted at clockwise, counter-clockwise or standard 50 % position n 5 mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint n RoHS compliant
* n For trimmer applica

PVG5H501C03B00 Applications

* processing guidelines, click here PVG5 Series
* SMD Sealed Type Multiturn Trimming Potentiometer Product Dimensions PVG5A 3.9 (.155) 1 2.5 (.100) 3.5 (.139) 1.2 (.047) 2 5.1 (.200) 1.3 (.050) 4.8 (.190) 3 2.6 (.103) 1.5 DIA. (.060) ADJUSTMENT SLOT 0.6 (.022) WIDE X 0.5 (.020) D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PVG5H501C03B00, PVG5A100C03R00. Please refer to the document for exact specifications by model.

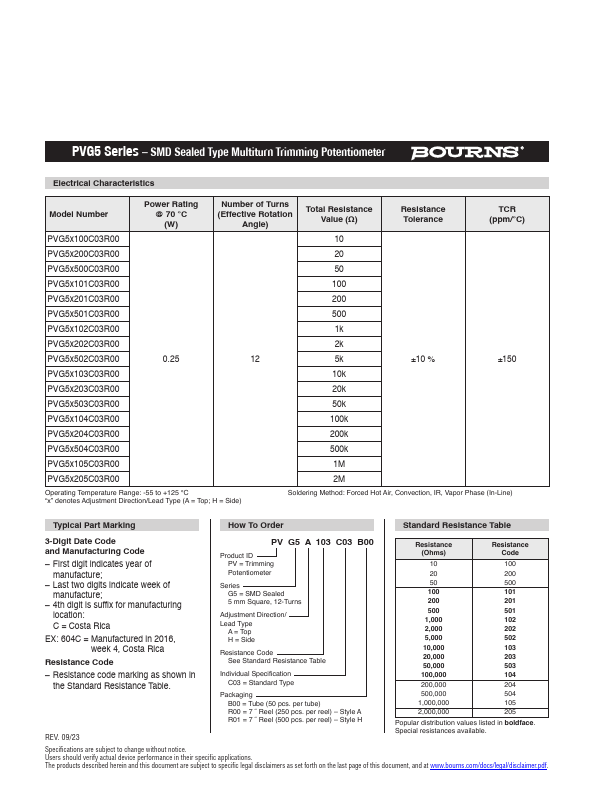

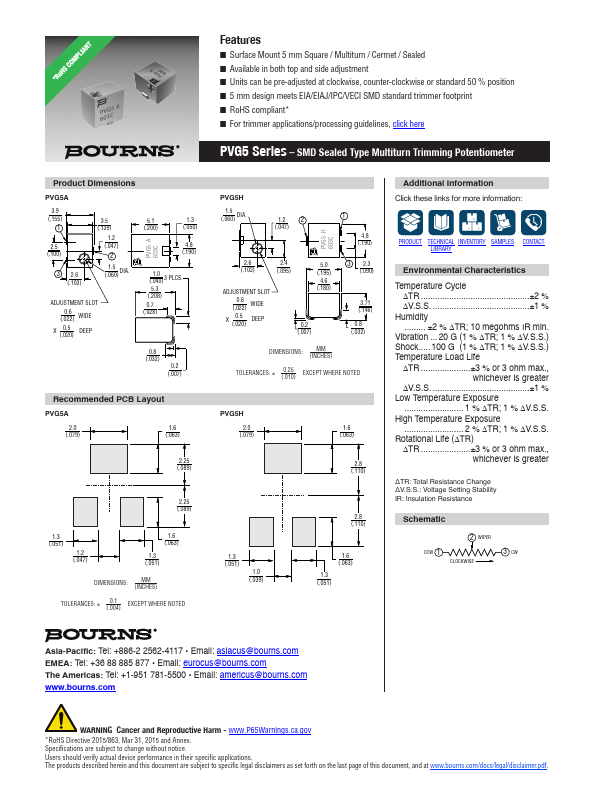

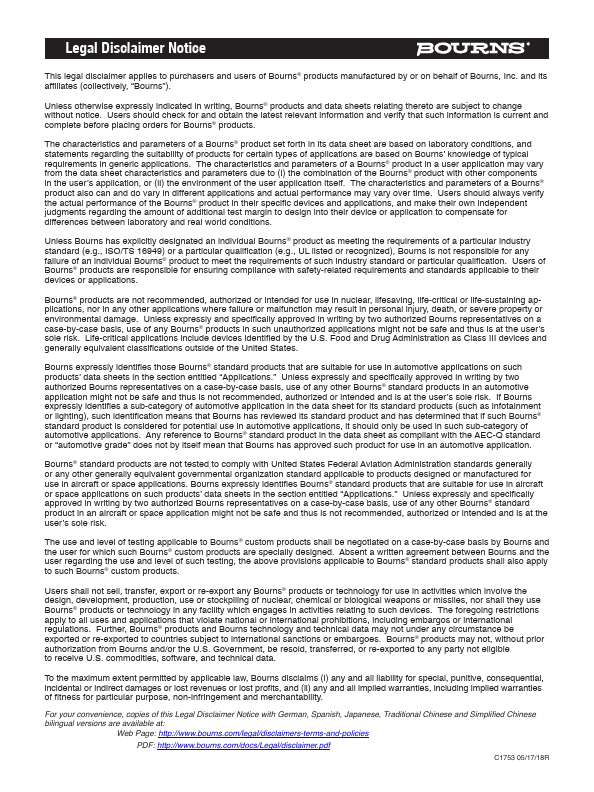

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PVG5H501C03B00, PVG5A100C03R00
Manufacturer
BOURNS
File Size
650.87 KB
Datasheet
PVG5A100C03R00-BOURNS.pdf
Description
Multiturn Trimming Potentiometer
Note
This datasheet PDF includes multiple part numbers: PVG5H501C03B00, PVG5A100C03R00.
Please refer to the document for exact specifications by model.
